787246-1

Obsolete

TE Connectivity AMP Connectors

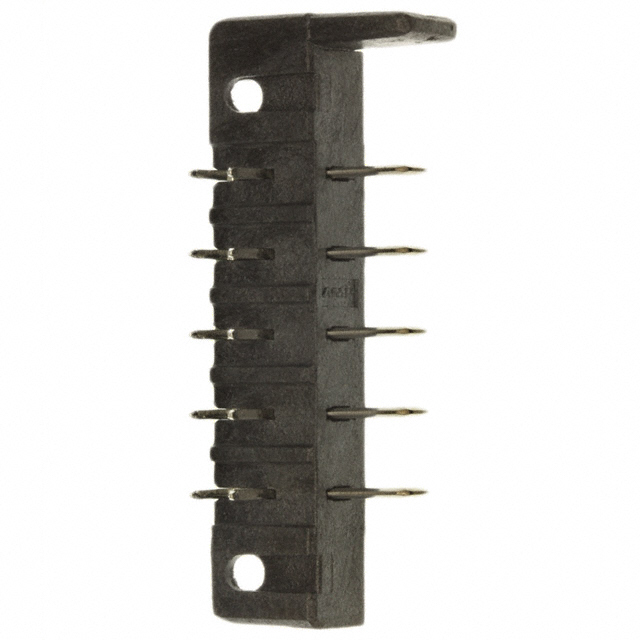

CONN HDR 5POS 5.00MM R/A SLDR

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN HDR 5POS 5.00MM R/A SLDR

Technical Specifications

Parameters and characteristics for this part

CONN HDR 5POS 5.00MM R/A SLDR

Part	Contact Material	Fastening Type	Current Rating (Amps)	Material - Insulation	Number of Rows	Contact Finish	Connector Type	Termination	Pitch [x]	Pitch [x]	Features	Color	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Mounting Type
TE Connectivity AMP Connectors 787246-1	Brass	Push-Pull	7 A	Liquid Crystal Polymer (LCP)	1	Nickel	Header, Male Blades	Solder	5 mm	0.197 in	Flange, Left Hand Keying	Black	10.8 V	70 °C	-30 ░C	1.9 µm	74.8 µin	10.8V Battery	Through Hole, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Through Hole, Right Angle
