CDM-8

Active

Curtis Industries

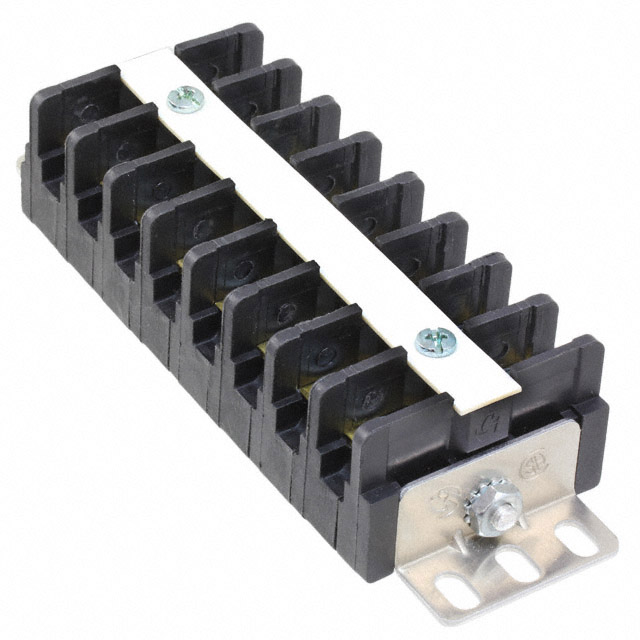

CONN BARRIER STRIP 8CIRC 0.546"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDM-8

Active

Curtis Industries

CONN BARRIER STRIP 8CIRC 0.546"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.38
		10	$ 25.32
		30	$ 24.44
		50	$ 23.56
		100	$ 22.86
		250	$ 22.42

Description

General part information

CDM Series

8 Circuit 0.546" (13.86mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Specification	CDM-8	CDM Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Closed	Closed
Current Rating (Amps)	30 A	30 A
Features	Marking Strip, Flange	Marking Strip, Flange
Material - Insulation	Polyester Thermoplastic	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	-	1 - 49
Number of Circuits [custom]	8	8
Number of Rows	2	2
Number of Wire Entries	16	2 - 98
Number of Wire Entries	-	80
Operating Temperature	130 °C	130 °C
Pitch [x]	0.546 in	0.546 in
Pitch [x]	13.86 mm	13.86 mm
Terminal Block Type	Barrier Block	Barrier Block
Top Termination	Screws	Screws
Voltage Rating	600 V	600 V
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	10 AWG	10 AWG

Part
