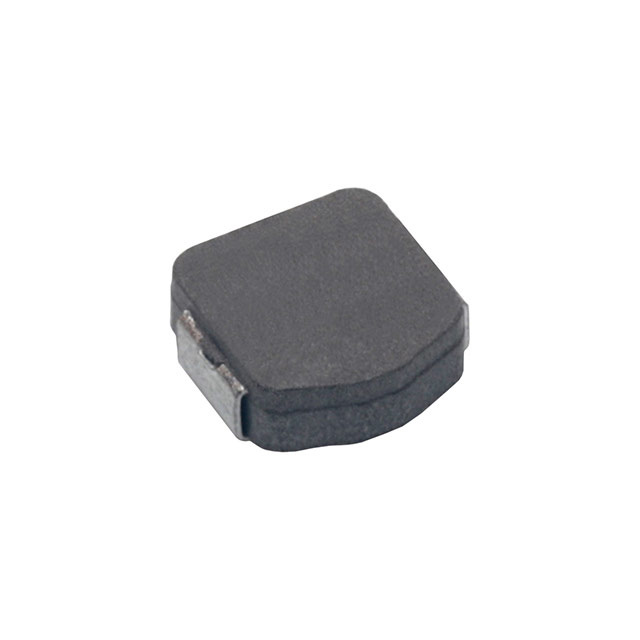

MPX1D0520LR22

Active

KEMET

FIXED IND 220NH 15A 5 MOHM SMD

Search across all available documentation for this part.

Active

KEMET

FIXED IND 220NH 15A 5 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Inductance	DC Resistance (DCR) [Max]	Package / Case	Current Rating (Amps)	Current - Saturation (Isat)	Material - Core	Tolerance	Inductance Frequency - Test	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]
KEMET MPX1D0520LR68	Surface Mount	0.68 µH	12.2 mOhm	Nonstandard	9.5 A	11 A	Metal Composite	20 %	100 kHz	Drum Core Wirewound	2 mm	0.079 in	Shielded	5.3 mm	5 mm	0.197 "	0.209 "	155 °C	-55 °C
KEMET MPX1D0520L4R7	Surface Mount	4.7 ÁH	96.6 mOhm	Nonstandard	3.4 A	4.5 A	Metal Composite	20 %	100 kHz	Drum Core Wirewound	2 mm	0.079 in	Shielded	5.3 mm	5 mm	0.197 "	0.209 "	155 °C	-55 °C
KEMET MPX1D0520LR22	Surface Mount	220 nH	5 mOhm	Nonstandard	15 A	19 A	Metal Composite	20 %	100 kHz	Drum Core Wirewound	2 mm	0.079 in	Shielded	5.3 mm	5 mm	0.197 "	0.209 "	155 °C	-55 °C
KEMET MPX1D0520L1R0	Surface Mount	1 µH	18.9 mOhm	Nonstandard	7.6 A	9 A	Metal Composite	20 %	100 kHz	Drum Core Wirewound	2 mm	0.079 in	Shielded	5.3 mm	5 mm	0.197 "	0.209 "	155 °C	-55 °C
KEMET MPX1D0520LR33	Surface Mount	330 nH	6.2 mOhm	Nonstandard	13.4 A	16 A	Metal Composite	20 %	100 kHz	Drum Core Wirewound	2 mm	0.079 in	Shielded	5.3 mm	5 mm	0.197 "	0.209 "	155 °C	-55 °C
KEMET MPX1D0520LR15	Surface Mount	150 nH	3.9 mOhm	Nonstandard	16.9 A	22 A	Metal Composite	20 %	100 kHz	Drum Core Wirewound	2 mm	0.079 in	Shielded	5.3 mm	5 mm	0.197 "	0.209 "	155 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 nH Shielded Drum Core, Wirewound Inductor 15 A 5mOhm Max Nonstandard
