UX5021E0100.000000

Active

Diodes Inc

XTAL OSC XO 100.0000MHZ LVPECL

Search across all available documentation for this part.

Active

Diodes Inc

XTAL OSC XO 100.0000MHZ LVPECL

Technical Specifications

Parameters and characteristics for this part

Specification	UX5021E0100.000000

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	25 mA
Current - Supply (Max) [Max]	70 mA
Frequency	100 MHz
Frequency Stability	50 ppm
Function	Enable/Disable
Height - Seated (Max)	1.35 mm
Height - Seated (Max) [Max] [z]	0.053 in
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVPECL

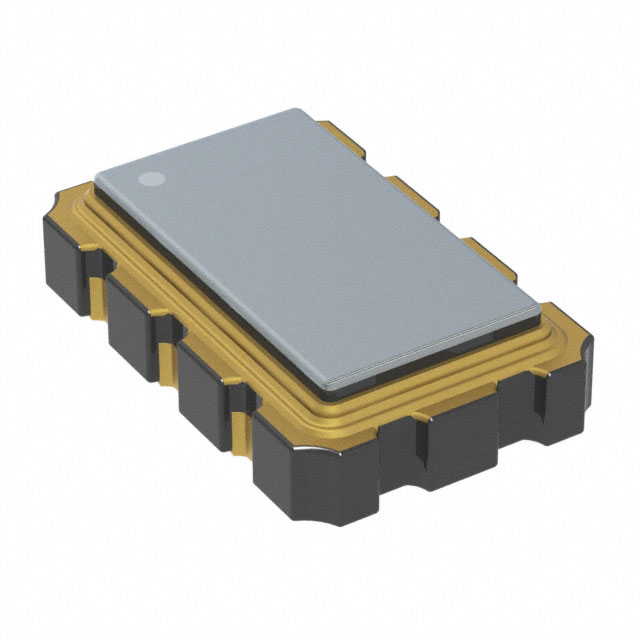

Package / Case	6-SMD, No Lead
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Type	XO (Standard)
Voltage - Supply	3.3 V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Frequency Stability	Current - Supply (Disable) (Max) [Max]	Base Resonator	Current - Supply (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Frequency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Output	Voltage - Supply	Function
Diodes Inc UX5021E0050.000000	Surface Mount	85 °C	-40 °C	6-SMD No Lead	50 ppm	25 mA	Crystal	70 mA	1.35 mm	0.053 in	50 MHz	0.197 in	0.126 "	3.2 mm	5 mm	XO (Standard)	LVPECL	3.3 V	Enable/Disable
Diodes Inc UX5021E0100.000000	Surface Mount	85 °C	-40 °C	6-SMD No Lead	50 ppm	25 mA	Crystal	70 mA	1.35 mm	0.053 in	100 MHz	0.197 in	0.126 "	3.2 mm	5 mm	XO (Standard)	LVPECL	3.3 V	Enable/Disable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 4.18

General part information

100 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
