10268-M218PE

Active

JE150337507 10268-M218PE=68/MDR/CONDO/RECP/20GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog +2

10268-M218PE

Active

JE150337507 10268-M218PE=68/MDR/CONDO/RECP/20GOLD

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 30.69
Newark	Each	100	$ 37.47
		250	$ 36.20

Description

General part information

10268 Series

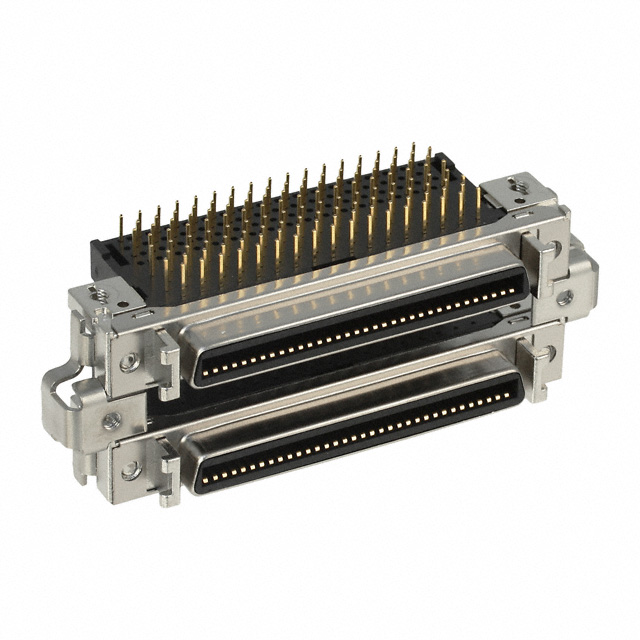

68, 68 Position Stacked, 2 Receptacles Connector Panel Mount, Through Hole, Right Angle Solder

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet

MDR Series Qualification Report

Datasheet

MDR Selection Guide

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10268-M218PE	10268 Series

	-	-
Connector Style	Outer Shroud Contacts	Outer Shroud Contacts
Connector Type	Stacked	Receptacle, Stacked
Connector Type	2 Plugs	2 Plugs
Contact Finish	Gold	Gold
Contact Finish Thickness	0.51 µm	0.2 - 0.76 Ám
Contact Finish Thickness	20 µin	7.87 - 30 Áin
Features	Shielded	Shielded, Board Lock
Flange Feature	Housing/Shell	Housing/Shell, Latchblocks, Housing/Shell (4-40)
Flange Feature	2.6 M	2.6 M
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, Right Angle
Number of Positions	68	68
Number of Rows	2	2
Termination	Solder	Press-Fit, Solder
Type	-	SCSI-2

10268 Series

CONN RCPT 68POS PCB PRESS-FIT

Part	Connector Type	Number of Positions	Contact Finish	Features	Connector Style	Mounting Type	Flange Feature	Flange Feature	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Type
3M 10268-R21CS	Receptacle	68	Gold	Shielded	Outer Shroud Contacts	Panel Mount, Through Hole	Housing/Shell	2.6 M	Press-Fit	0.76 Ám	30 Áin	2
3M 10268-M218PE	Stacked	68	Gold	Shielded	Outer Shroud Contacts	Panel Mount, Right Angle, Through Hole	Housing/Shell	2.6 M	Solder	0.51 µm	20 µin	2	2 Plugs
3M 10268-5JBEPC	Receptacle	68	Gold	Board Lock, Shielded	Outer Shroud Contacts	Panel Mount, Right Angle, Through Hole	Housing/Shell	2.6 M	Solder	0.76 Ám	30 Áin	2		SCSI-2
3M 10268-6212VC	Receptacle	68	Gold	Shielded	Outer Shroud Contacts	Panel Mount, Through Hole	Housing/Shell	2.6 M	Solder	0.76 Ám	30 Áin	2
3M 10268-6202VC	Receptacle	68	Gold	Shielded	Outer Shroud Contacts	Panel Mount, Through Hole	Housing/Shell	2.6 M	Solder	0.76 Ám	30 Áin	2
3M 10268-6202PL	Receptacle	68	Gold	Shielded	Outer Shroud Contacts	Panel Mount, Through Hole	Housing/Shell, Latchblocks		Solder	0.2 µm	7.87 µin	2
3M 10268-6202PC	Receptacle	68	Gold	Shielded	Outer Shroud Contacts	Panel Mount, Through Hole	Housing/Shell	2.6 M	Solder	0.76 Ám	30 Áin	2
3M 10268-M218VE	Stacked	68	Gold	Shielded	Outer Shroud Contacts	Panel Mount, Right Angle, Through Hole	Housing/Shell	2.6 M	Solder	0.51 µm	20 µin	2	2 Plugs
3M 10268-R21TS	Receptacle	68	Gold	Shielded	Outer Shroud Contacts	Panel Mount, Through Hole	Housing/Shell	2.6 M	Press-Fit	0.76 Ám	30 Áin	2
3M 10268-55H3PL	Receptacle	68	Gold	Board Lock, Shielded	Outer Shroud Contacts	Panel Mount, Right Angle, Through Hole	Housing/Shell (4-40), Latchblocks		Solder	0.2 µm	7.87 µin	2
