XDMDK57C

Active

SunLED

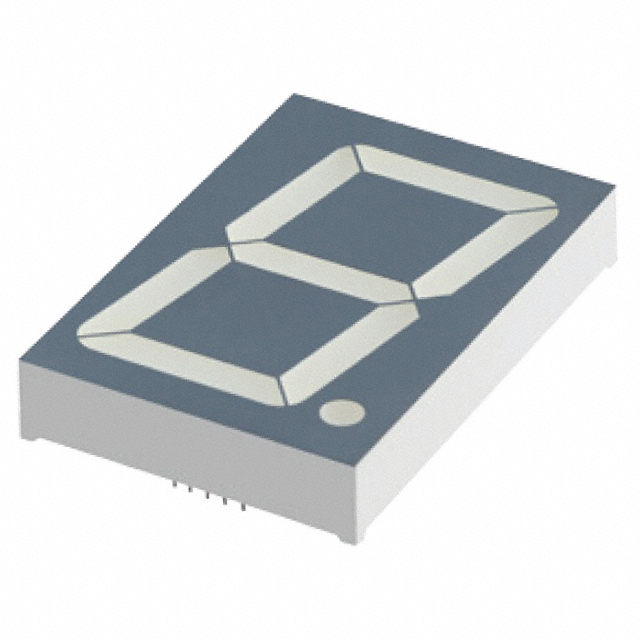

DISPLAY 7-SEG 2.3" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDMDK57C

Active

SunLED

DISPLAY 7-SEG 2.3" SGL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XDMDK57C	XDMDK57 Series

Color	Red	Red
Common Pin	Common Cathode	Common Anode, Common Cathode
Current - Test	10 mA	10 mA
Digit/Alpha Size	2.3 in	2.3 in
Digit/Alpha Size	58.42 mm	58.42 mm
Display Type	7-Segment	7-Segment
Millicandela Rating	120 mcd	120 mcd
Number of Characters [custom]	1	1
Package / Case	2.367 in	2.367 in
Package / Case	60.1 mm	60.1 mm
Package / Case	10-DIP	10-DIP
Power Dissipation (Max) [Max]	150 mW	150 mW
Size / Dimension [x]	2.756 in	2.756 in
Size / Dimension [x]	70 mm	70 mm
Size / Dimension [y]	48 mm	48 mm
Size / Dimension [y]	1.89 in	1.89 in
Size / Dimension [z]	0.472 "	0.472 "
Size / Dimension [z]	12 mm	12 mm
Voltage - Forward (Vf) (Typ)	7.4 V	7.4 V
Wavelength - Peak	645 nm	645 nm

XDMDK57 Series

DISPLAY 7-SEG 2.3" SGL RED 10DIP

Part	Current - Test	Color	Power Dissipation (Max) [Max]	Wavelength - Peak	Millicandela Rating	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Number of Characters [custom]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Display Type	Common Pin
SunLED XDMDK57A	10 mA	Red	150 mW	645 nm	120 mcd	2.3 in	58.42 mm	2.367 in	60.1 mm	10-DIP	7.4 V	1	0.472 "	12 mm	2.756 in	48 mm	70 mm	1.89 in	7-Segment	Common Anode
SunLED XDMDK57C	10 mA	Red	150 mW	645 nm	120 mcd	2.3 in	58.42 mm	2.367 in	60.1 mm	10-DIP	7.4 V	1	0.472 "	12 mm	2.756 in	48 mm	70 mm	1.89 in	7-Segment	Common Cathode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 5.37

Description

General part information

XDMDK57 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 7.4V 10mA 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) 10-DIP (2.367", 60.10mm)
