Q-2S04X000H006I

Active

Amphenol Custom Cable

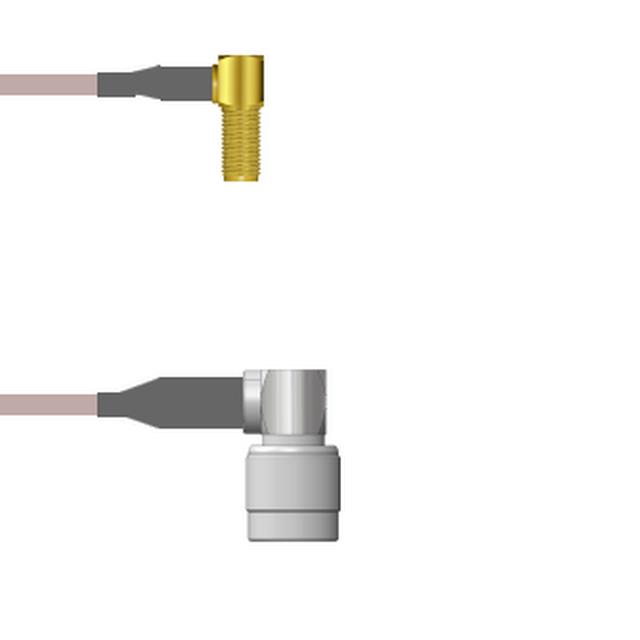

COAX CABLE SMA TO TNC 6"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE SMA TO TNC 6"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2S04X000H006I

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	SMA to TNC

Part	Cable Type	2nd Contact Gender	1st Contact Gender	Color	1st Connector	1st Connector Mounting Feature	2nd Connector	Style	Connector Impedance	Features	Frequency - Max [Max]	1st Connector Mounting Type	2nd Connector Mounting Type	Cable Impedance	Length	Length	Overall Impedance
Amphenol Custom Cable Q-2S04X000H006I	RG-142	Male	Female	Copper	Right Angle SMA Jack	Bulkhead - Front Side Nut	TNC Plug Right Angle	SMA to TNC	50 Ohms	Shielded	11 GHz	Panel Mount	Free Hanging (In-Line)	50 Ohms	152.4 mm	6 in	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to TNC RG-142 6.000" (152.40mm)

Technical documentation and resources

No documents available
