Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZMSH03130P00JSC | ZMSH03130 Series |
|---|---|---|
| Actuator Type | - | Round (Pin Plunger) |
| Circuit | - | SPDT |
| Current Rating (Amps) | - | 3 A |
| Differential Travel | - | 0.012 " |
| Differential Travel | - | 0.3 mm |
| Electrical Life | - | 100000 Cycles |
| Features | - | Support Posts |
| Ingress Protection | - | IP65 - Dust Tight, Water Resistant, IP67 - Dust Tight, Waterproof |
| Mechanical Life | - | 500000 Cycles |
| Mounting Type | - | Chassis Mount, Through Hole, Through Hole, Right Angle |
| null | - | |
| Operating Force | - | 130 gf |
| Operating Position | - | 0.415 in |
| Operating Position | - | 10.55 - 13.7 mm |
| Operating Position | - | 0.539 in |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Overtravel | - | 1.7 mm |
| Overtravel | - | 0.065 in |
| Pretravel | - | 0.03 in |
| Pretravel | - | 0.8 mm |
| Release Force | - | 13 gf |
| Switch Function | - | On-Mom |
| Termination Style | - | Solder Lug, PC Pin, Wire Leads |
| Voltage Rating - AC | - | 125 V |
| Voltage Rating - DC | - | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
ZMSH03130 Series

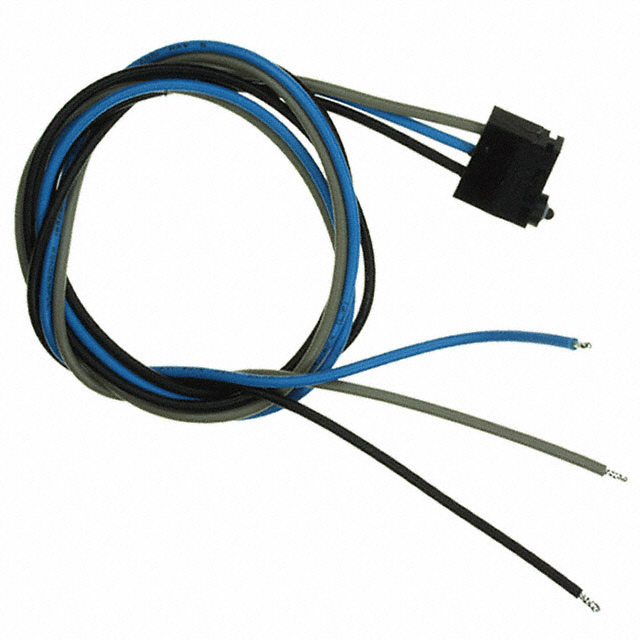

Mini Size Snap-acting Switch
| Part | Operating Position | Operating Position | Ingress Protection | Overtravel | Overtravel | Current Rating (Amps) | Circuit | Electrical Life | Operating Force | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Switch Function | Differential Travel | Differential Travel | Pretravel | Pretravel | Voltage Rating - AC | Voltage Rating - DC | Release Force | Actuator Type | Mounting Type | Features | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE ZMSH03130P00PSC | |||||||||||||||||||||||||
LITTELFUSE ZMSH03130P00JSC | |||||||||||||||||||||||||
LITTELFUSE ZMSH03130P00RRC | |||||||||||||||||||||||||
LITTELFUSE ZMSH03130P00RRC | |||||||||||||||||||||||||
LITTELFUSE ZMSH03130P00SSC | |||||||||||||||||||||||||
LITTELFUSE ZMSH03130P00SSC | 0.415 in | 10.55 mm | IP65 - Dust Tight, Water Resistant | 1.7 mm | 0.065 in | 3 A | SPDT | 100000 Cycles | 130 gf | 500000 Cycles | 85 °C | -40 °C | Solder Lug | On-Mom | 0.012 " | 0.3 mm | 0.03 in | 0.8 mm | 125 V | 12 V | 13 gf | Round (Pin Plunger) | Chassis Mount | ||
LITTELFUSE ZMSH03130P00PSC | 0.415 in | 10.55 mm | IP65 - Dust Tight, Water Resistant | 1.7 mm | 0.065 in | 3 A | SPDT | 100000 Cycles | 130 gf | 500000 Cycles | 85 °C | -40 °C | PC Pin | On-Mom | 0.012 " | 0.3 mm | 0.03 in | 0.8 mm | 125 V | 12 V | 13 gf | Round (Pin Plunger) | Through Hole | ||
LITTELFUSE ZMSH03130P00RRC | 0.415 in | 10.55 mm | IP65 - Dust Tight, Water Resistant | 1.7 mm | 0.065 in | 3 A | SPDT | 100000 Cycles | 130 gf | 500000 Cycles | 85 °C | -40 °C | PC Pin | On-Mom | 0.012 " | 0.3 mm | 0.03 in | 0.8 mm | 125 V | 12 V | 13 gf | Round (Pin Plunger) | Through Hole, Right Angle | Support Posts | |
LITTELFUSE ZMSH03130P00JSC | 13.7 mm | IP67 - Dust Tight, Waterproof | 1.7 mm | 0.065 in | 3 A | SPDT | 100000 Cycles | 130 gf | 500000 Cycles | 85 °C | -40 °C | Wire Leads | On-Mom | 0.012 " | 0.3 mm | 0.03 in | 0.8 mm | 125 V | 12 V | 13 gf | Round (Pin Plunger) | Chassis Mount | 0.539 in |
Description
General part information
ZMSH03130 Series
PCB detection switches, communication devices and testing equipment rely upon the long-lasting, highly responsive ZMS series mini size snap-acting switch from C&K. The ZMS series feature a reliable snap-acting mechanism and a compact size, giving designers extra space because of its compact size – and giving their applications the long electrical and mechanical life they need.
