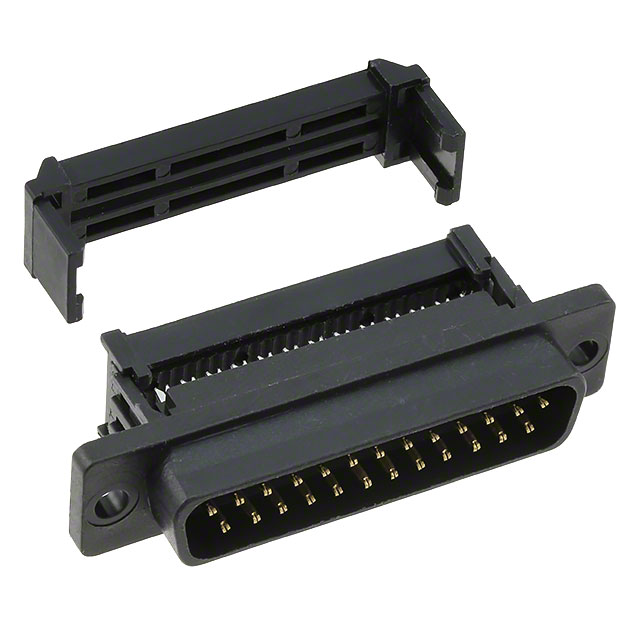

A-DSF 25 LPIII/FP
ActiveAssmann WSW Components
CONN D-SUB PLUG 25POS IDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A-DSF 25 LPIII/FP
ActiveAssmann WSW Components
CONN D-SUB PLUG 25POS IDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-DSF 25 LPIII/FP |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Feed Through, Strain Relief |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | IDC, Ribbon Cable |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.35 | |
| 10 | $ 2.05 | |||
| 25 | $ 1.96 | |||
| 48 | $ 1.92 | |||
| 96 | $ 1.83 | |||
| 240 | $ 1.65 | |||
| 480 | $ 1.52 | |||
| 960 | $ 1.31 | |||
| 2400 | $ 1.22 | |||
Description
General part information
A-DSF 25 Series
25 Position D-Sub Plug, Male Pins Connector
