R121705000

Active

Radiall USA, Inc.

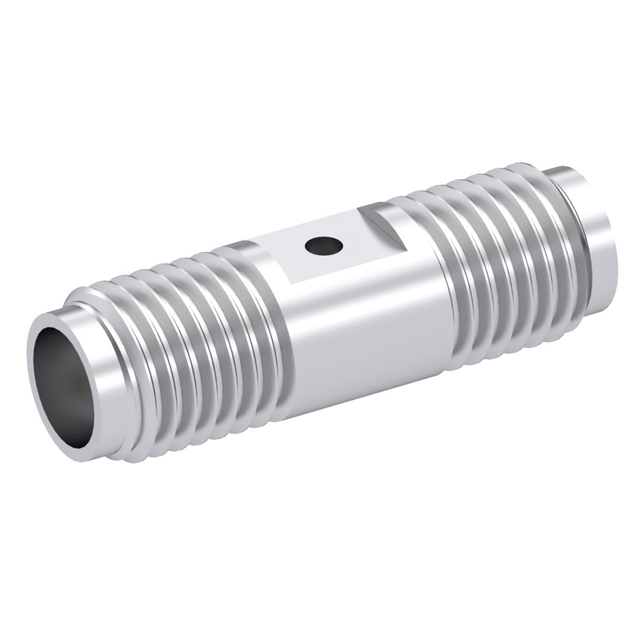

SSMA / FEMALE -FEMALE ADAPTER

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMA / FEMALE -FEMALE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	R121705000

Adapter Series	SSMA to SSMA
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	SSMA Jack, Female Socket
Convert To (Adapter End)	Female Socket, SSMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Center Gender	Frequency - Max [Max]	Dielectric Material	Adapter Type	Mounting Type	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Mating Cycles	Convert From (Adapter End)	Body Material	Impedance	Convert To (Adapter End)	Adapter Series	Center Contact Material	Center Contact Plating
Radiall USA, Inc. R121705000	Female to Female	18 GHz	Polytetrafluoroethylene (PTFE)	Jack to Jack	Free Hanging (In-Line)	Same Series	155 °C	-55 °C	Straight	500	SSMA Jack Female Socket	Stainless Steel	50 Ohms	Female Socket SSMA Jack	SSMA to SSMA	Beryllium Copper	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 93.54

General part information

Adapter Coaxial Connector SSMA Jack, Female Socket To SSMA Jack, Female Socket 50 Ohms
