MMIX1F360N15T2

Active

IXYS

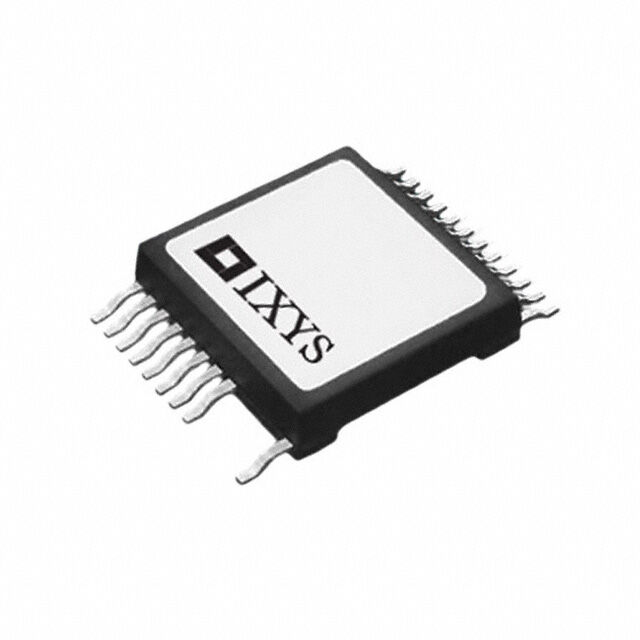

MOSFET N-CH 150V 235A 24SMPD

Search across all available documentation for this part.

Active

IXYS

MOSFET N-CH 150V 235A 24SMPD

Technical Specifications

Parameters and characteristics for this part

Specification	MMIX1F360N15T2

Current - Continuous Drain (Id) @ 25°C	235 A
Drain to Source Voltage (Vdss)	150 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	715 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]	47500 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	24-PowerSMD, 21 Leads
Power Dissipation (Max) [Max]	680 W
Rds On (Max) @ Id, Vgs	4.4 mOhm
Supplier Device Package	24-SMPD
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	5 V

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)	Power Dissipation (Max) [Max]	FET Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Technology	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Max) @ Id, Vgs	Package / Case	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	Supplier Device Package
IXYS MMIX1F360N15T2	715 nC	150 V	680 W	N-Channel	47500 pF	MOSFET (Metal Oxide)	10 V	5 V	Surface Mount	-55 °C	175 ░C	4.4 mOhm	24-PowerSMD 21 Leads	235 A	20 V	24-SMPD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 33.37

General part information

N-Channel 150 V 235A (Tc) 680W (Tc) Surface Mount 24-SMPD
