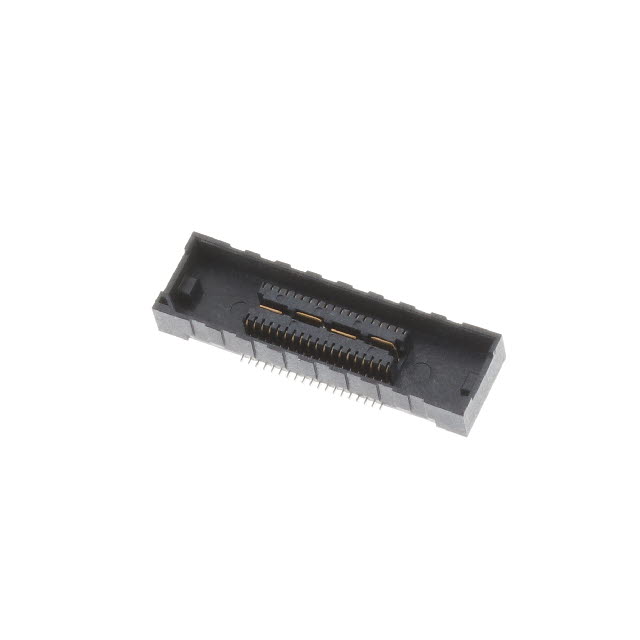

MIS-019-01-F-D-K - MIS-019-01-F-D-K

MIS-019-01-F-D-K

Active
Samtec Inc.

CONN SOCKET 38POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMIS Datasheet0.635 mm Mixed Technology High-Speed Socket Strip+1
MIS-019-01-F-D-K - MIS-019-01-F-D-K

MIS-019-01-F-D-K

Active
Samtec Inc.

CONN SOCKET 38POS SMD GOLD

Deep-Dive with AI

DocumentsMIS Datasheet0.635 mm Mixed Technology High-Speed Socket Strip+1

Technical Specifications

Parameters and characteristics for this part

SpecificationMIS-019-01-F-D-K
Connector TypeSocket, Center Strip Contacts
Contact FinishGold
Contact Finish ThicknessFlash
FeaturesBoard Guide, Ground Bus (Plane), Pick and Place
Height Above Board0.143 in
Height Above Board3.63 mm
Mated Stacking Heights22 mm, 18.75 mm, 16 mm, 11 mm
Mounting TypeSurface Mount
Number of Positions38
Number of Rows2
Pitch [x]0.64 mm
Pitch [x]0.025 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 9.62
10$ 7.38
25$ 6.66
40$ 6.33
80$ 5.88
230$ 5.27
440$ 4.93
945$ 4.58

Description

General part information

MIS-019 Series

38 Position Connector Socket, Center Strip Contacts Surface Mount Gold
