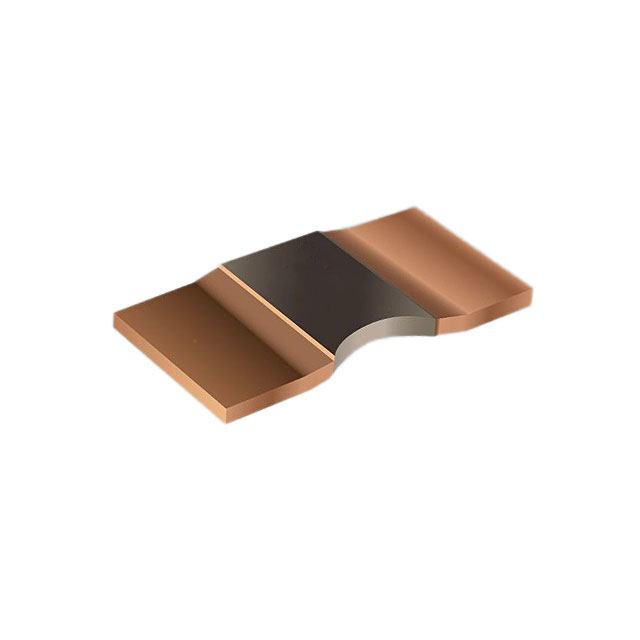

CSS2H-5930K-1L00FE

Active

Bourns Inc.

RES 0.001 OHM 1% 9W 5930

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CSS2H-5930K-1L00FE

Active

Bourns Inc.

RES 0.001 OHM 1% 9W 5930

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CSS2H-5930K-1L00FE

Composition	Metal Element
Features	Automotive AEC-Q200, Current Sense
Height - Seated (Max)	1.62 mm
Height - Seated (Max) [Max] [z]	0.064 in
Number of Terminations	2
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Power (Watts)	9 W
Ratings	AEC-Q200
Resistance	1 mOhms
Size / Dimension [x]	0.591 in
Size / Dimension [x]	15 mm
Size / Dimension [y]	7.75 mm
Size / Dimension [y]	0.305 in
Supplier Device Package	5930
Temperature Coefficient	50 ppm/°C
Tolerance	1 %

CSS2H Series

Part	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Ratings	Supplier Device Package	Tolerance	Resistance	Package / Case	Package / Case	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Supplier Device Package	Height - Seated (Max)
Bourns Inc. CSS2H-2512R-1L00F	Automotive AEC-Q200 Current Sense	0.039 "	1 mm	3.05 mm	0.25 "	6.35 mm	0.12 "	5 W	AEC-Q200	2512	1 %	1 mOhms	6432 Metric	2512	Metal Element	170 °C	-55 °C	2	75 ppm/°C
Bourns Inc. CSS2H-2512R-L300F	Automotive AEC-Q200 Current Sense			3.05 mm	0.25 "	6.35 mm	0.12 "	6 W	AEC-Q200	2512	1 %	300 µOhms	6432 Metric	2512	Metal Element	170 °C	-55 °C	2	50 ppm/°C	1.87 mm	0.074 in
Bourns Inc. CSS2H-2512K-2L00F	Automotive AEC-Q200 Current Sense			3.05 mm	0.25 "	6.35 mm	0.12 "	5 W	AEC-Q200	2512	1 %	2 mOhms	6432 Metric	2512	Metal Element	170 °C	-55 °C	2	50 ppm/°C	1.32 mm	0.052 in
Bourns Inc. CSS2H-5930K-2L00FE	Automotive AEC-Q200 Current Sense				0.591 in	15 mm	0.305 in	7 W	AEC-Q200	5930	1 %	2 mOhms		Nonstandard	Metal Element	170 °C	-55 °C	2	50 ppm/°C	1.23 mm	0.048 "	7.75 mm
Bourns Inc. CSS2H-2512K-3L00FE	Automotive AEC-Q200 Current Sense	0.041 in	1.03 mm	3.05 mm	0.25 "	6.35 mm	0.12 "	4 W	AEC-Q200	2512	1 %	3 mOhms	6432 Metric	2512	Metal Element	170 °C	-55 °C	2	50 ppm/°C
Bourns Inc. CSS2H-3920K-2L00F	Automotive AEC-Q200 Current Sense				0.394 "	10 mm	0.205 "	6 W	AEC-Q200		1 %	2 mOhms	1052	3920	Metal Element	170 °C	-55 °C	2	50 ppm/°C	1.39 mm	0.055 in	5.2 mm	3920
Bourns Inc. CSS2H-5930K-3L00FE	Automotive AEC-Q200 Current Sense		1.02 mm		0.591 in	15 mm	0.305 in	6 W	AEC-Q200	5930	1 %	3 mOhms		Nonstandard	Metal Element	170 °C	-55 °C	2	50 ppm/°C		0.04 "	7.75 mm
Bourns Inc. CSS2H-5930R-L500FE	Automotive AEC-Q200 Current Sense				0.591 in	15 mm	0.305 in	8 W	AEC-Q200	5930	1 %	0.5 mOhms		Nonstandard	Metal Element	170 °C	-55 °C	2	50 ppm/°C	1.23 mm	0.048 "	7.75 mm
Bourns Inc. CSS2H-5930R-L500F	Automotive AEC-Q200 Current Sense				0.591 in	15 mm	0.305 in	8 W	AEC-Q200	5930	1 %	0.5 mOhms		Nonstandard	Metal Element	170 °C	-55 °C	2	50 ppm/°C	1.23 mm	0.048 "	7.75 mm
Bourns Inc. CSS2H-5930K-1L00FE	Automotive AEC-Q200 Current Sense				0.591 in	15 mm	0.305 in	9 W	AEC-Q200	5930	1 %	1 mOhms		Nonstandard	Metal Element	170 °C	-55 °C	2	50 ppm/°C		0.064 in	7.75 mm		1.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.27
		10	$ 1.07
		25	$ 1.05
		50	$ 0.98
		100	$ 0.82
		250	$ 0.74
	Digi-Reel®	1	$ 1.27
		10	$ 1.07
		25	$ 1.05
		50	$ 0.98
		100	$ 0.82
		250	$ 0.74
	Tape & Reel (TR)	500	$ 0.72

Description

General part information

CSS2H Series

1 mOhms ±1% 9W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense Metal Element
