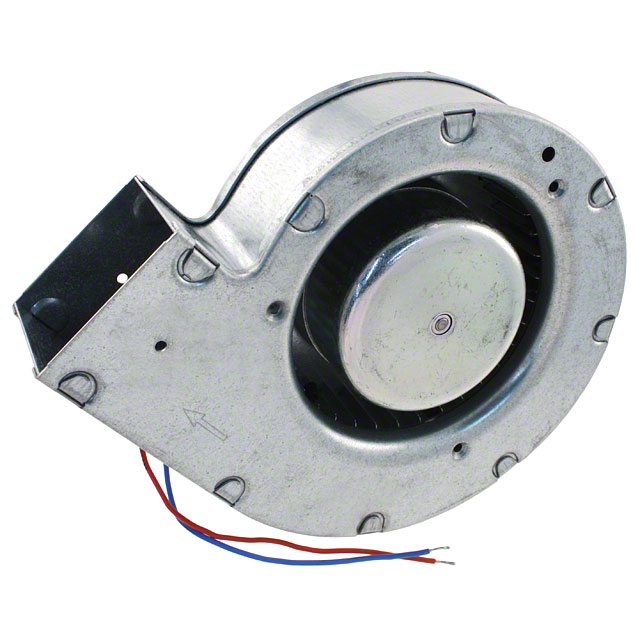

G2G097-AA16-01
Obsoleteebm-papst Inc.
FAN BLOWER 143X41MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
G2G097-AA16-01
Obsoleteebm-papst Inc.
FAN BLOWER 143X41MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G2G097-AA16-01 |
|---|---|
| Air Flow | 1.4 m³/min |
| Air Flow | 50 CFM |
| Bearing Type | Ball |
| Fan Type | Blower |
| Material - Blade | Steel |
| Material - Frame | Steel |
| Noise | 57 dB |
| Power (Watts) | 18 W |
| Size / Dimension [x] | 143 mm |
| Size / Dimension [y] | 137 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 16 VDC |
| Weight | 907.2 g |
| Weight | 2 lbs |
| Width [y] | 41 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
G2G097 Series
Fan Blower 24VDC Rectangular/Rounded - 143mm L x 137mm H Ball 50.0 CFM (1.40m³/min) 2 Wire Leads
