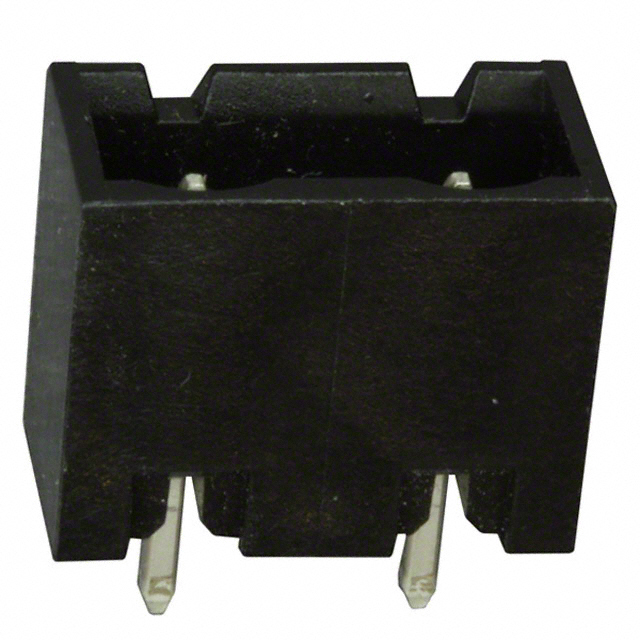

ELFH02450

Active

AMPHENOL PCD

TERM BLOCK HDR 2POS VERT 7.62MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK HDR 2POS VERT 7.62MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFH02450

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Header Orientation	Vertical
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature	105 C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	2
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Color	Features	Contact Mating Finish	Termination Style	Insulation Height	Insulation Height [z]	Voltage - UL	Number of Positions	Contact Tail Length	Contact Tail Length	Type	Number of Levels	Pitch [x]	Pitch [x]	Positions Per Level	Material Flammability Rating	Operating Temperature	Housing Material	Header Orientation	Mounting Type	Contact Material
AMPHENOL PCD ELFH02450E	Black	Mating Flange	Tin	Solder	12.07 mm	0.475 in	300 V	2	3.94 mm	0.155 in	Header Male Pins Shrouded (4 Side)	1	0.3 in	7.62 mm	2	UL94 V-0	105 C	Polybutylene Terephthalate (PBT)	Vertical	Through Hole	Brass
AMPHENOL PCD ELFH02450	Black		Tin	Solder			300 V	2			Header Male Pins Shrouded (4 Side)	1	0.3 in	7.62 mm	2	UL94 V-0	105 C		Vertical	Through Hole	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.56

General part information

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) Vertical Through Hole
