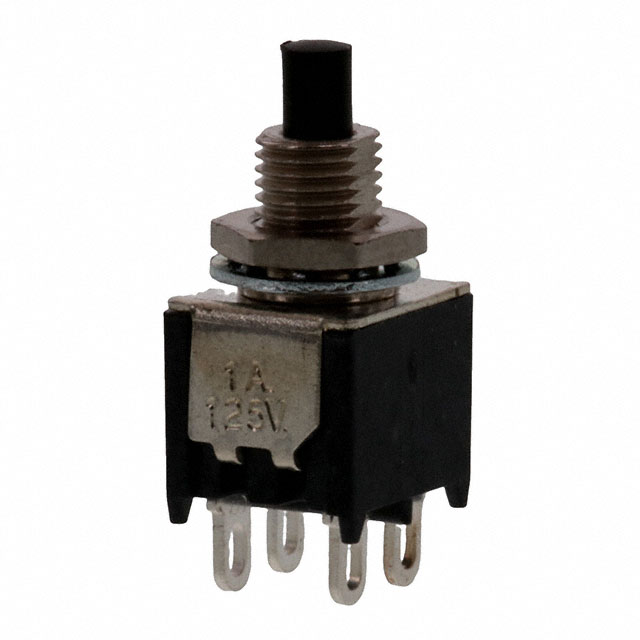

TPC23M0

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSH DPST-NO 1A 125V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSH DPST-NO 1A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	TPC23M0

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	DPST-NO
Color - Actuator/Cap	Black
Electrical Life	50000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	4.83 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	20 V

Part	Actuator Type	Mounting Type	Switch Function	Voltage Rating - AC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Type	Color - Actuator/Cap	Circuit	Electrical Life	Panel Cutout Dimensions [diameter]	Actuator Marking
TE Connectivity Raychem Cable Protection TPC23M0	Round Plunger	Panel Mount Rear	Off-Mom	125 V	Solder Lug	65 °C	-30 ░C	20 V	Standard	Black	DPST-NO	50000 Cycles	4.83 mm	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 26.86

General part information

Pushbutton Switch DPST-NO Standard Panel Mount, Rear
