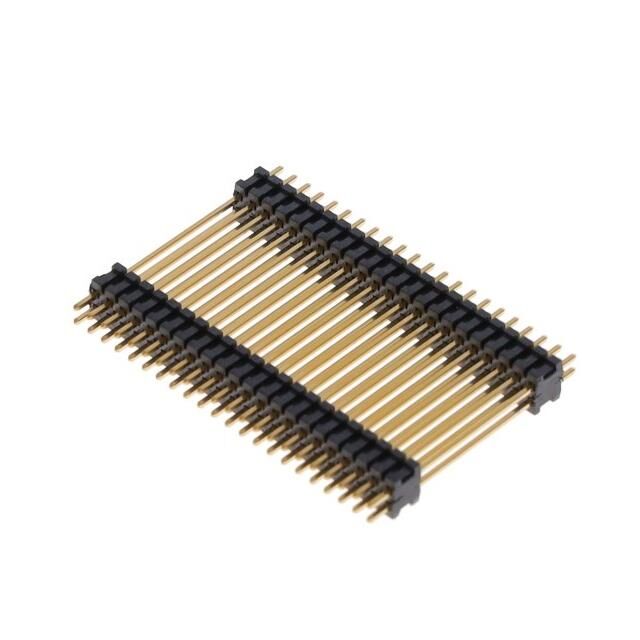

FW-21-02-G-D-380-170

Active

Samtec Inc.

CONN HDR 42POS 0.05 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 42POS 0.05 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Specification	FW-21-02-G-D-380-170

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	0.625 in
Length - Overall Pin [x]	15.875 mm
Length - Post (Mating) [x]	4.318 mm
Length - Post (Mating) [x]	0.17 in
Length - Stack Height [x]	0.38 in
Length - Stack Height [x]	9.652 mm
Length - Tail	1.905 mm
Length - Tail	0.075 in
Mounting Type	Through Hole
Number of Positions	42
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Termination	Solder

Part	Length - Stack Height [x]	Length - Stack Height [x]	Number of Positions	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Mounting Type	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Tail	Length - Tail	Number of Rows	Color	Termination	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin	Length - Overall Pin	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. FW-21-02-F-D-196-157	4.978 mm	0.196 in	42	3 Áin	0.076 Ám	Through Hole	10.871 mm	0.428 in	1.905 mm	0.075 in	2	Black	Solder	1.27 mm	0.05 in	0.05 in	1.27 mm	Gold	0.157 in	3.988 mm
Samtec Inc. FW-21-02-F-D-530-195			42	3 Áin	0.076 Ám	Through Hole			1.905 mm	0.075 in	2	Black	Solder	1.27 mm	0.05 in	0.05 in	1.27 mm	Gold	0.195 in	4.953 mm	0.8 in	20.32 mm	13.462 mm	0.53 in
Samtec Inc. FW-21-02-G-D-313-075			42	10 Áin	0.25 Ám	Through Hole	11.76 mm	0.463 in	1.905 mm	0.075 in	2	Black	Solder	1.27 mm	0.05 in	0.05 in	1.27 mm	Gold	0.075 in	1.905 mm			7.95 mm	0.313 in
Samtec Inc. FW-21-02-H-D-530-195			42	30 µin	0.76 µm	Through Hole			1.905 mm	0.075 in	2	Black	Solder	1.27 mm	0.05 in	0.05 in	1.27 mm	Gold	0.195 in	4.953 mm	0.8 in	20.32 mm	13.462 mm	0.53 in
Samtec Inc. FW-21-02-H-D-313-075			42	30 µin	0.76 µm	Through Hole	11.76 mm	0.463 in	1.905 mm	0.075 in	2	Black	Solder	1.27 mm	0.05 in	0.05 in	1.27 mm	Gold	0.075 in	1.905 mm			7.95 mm	0.313 in
Samtec Inc. FW-21-02-G-D-380-170	9.652 mm	0.38 in	42	10 Áin	0.25 Ám	Through Hole	15.875 mm	0.625 in	1.905 mm	0.075 in	2	Black	Solder	1.27 mm	0.05 in	0.05 in	1.27 mm	Gold	0.17 in	4.318 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	21	$ 5.56

General part information

42 Position Header Spacer Connector 0.050" (1.27mm) Gold Through Hole
