PTFA041501E-V4-R250

Obsolete

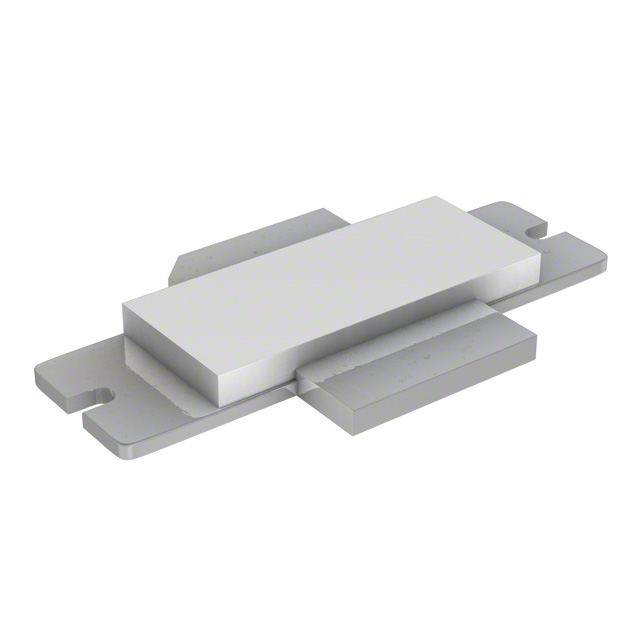

RF MOSFET LDMOS 28V H-36248-2

Obsolete

RF MOSFET LDMOS 28V H-36248-2

Description

General part information

RF Mosfet 28 V 900 mA 470MHz 21dB 150W H-36248-2

Parameters and characteristics for this part

Part	Package / Case	Current Rating	Current - Test	Technology	Voltage - Test	Voltage - Rated	Gain	Power - Output	Package Name	Frequency (Max)	Frequency (Min)	Frequency	Mounting Type
MACOM Technology Solutions PTFA041501F-V4-R0	2-FlatPack Fin Leads	1 µA	900 mA	LDMOS	28 V	65 V	21 dB	150 W	H-37248-2	500 MHz	420 MHz
MACOM Technology Solutions PTFA041501E-V4-R0	2-FlatPack Fin Leads	1 µA	900 mA	LDMOS	28 V	65 V	21 dB	150 W	H-36248-2	500 MHz	420 MHz
MACOM Technology Solutions PTFA041501F-V4-R250	2-FlatPack Fin Leads Flanged		900 mA	LDMOS	28 V	65 V	21 dB	150 W	H-37248-2			470 MHz	Surface Mount
MACOM Technology Solutions PTFA041501E-V4-R250	2-FlatPack Fin Leads		900 mA	LDMOS	28 V	65 V	21 dB	150 W	H-36248-2			470 MHz	Surface Mount
