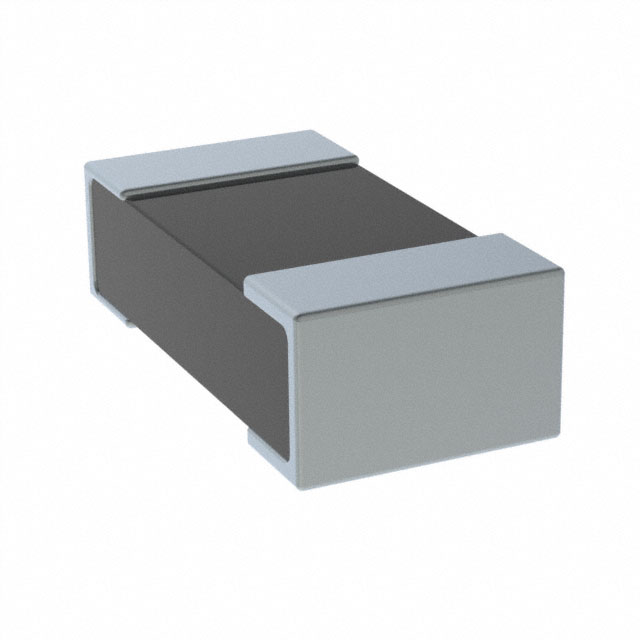

UR73D1JTTD56L0F
ActiveKOA Speer Electronics, Inc.
RES 56M OHM 1% 1/4W 0603
UR73D1JTTD56L0F
ActiveKOA Speer Electronics, Inc.
RES 56M OHM 1% 1/4W 0603
Description
General part information
UR73D1J Series
56 mOhms ±1% 0.25W, 1/4W Chip Resistor 0603 (1608 Metric) Current Sense Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | UR73D1JTTD56L0F |
|---|---|
| Composition | Thick Film |
| Features | Current Sense |
| Height - Seated (Max) | 0.018 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 56 mOhms |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
