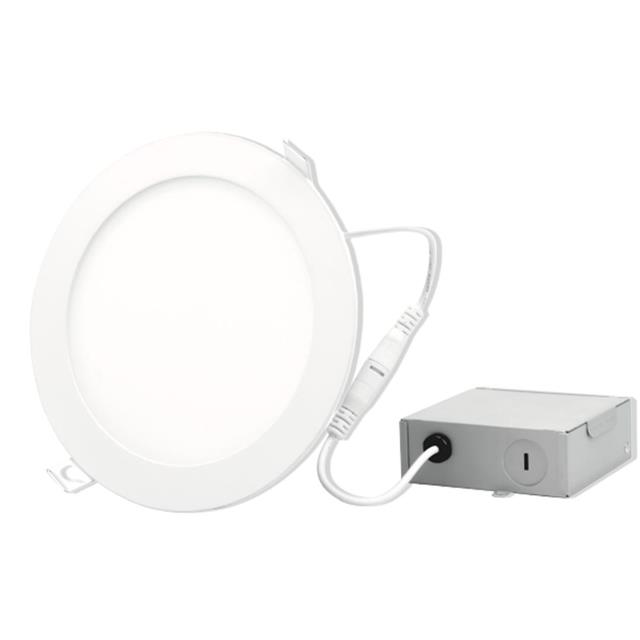

TL-SPL1R6-12W-5CCT

Active

TECHNO LED LIGHTS

LED MOD WHITE ROUND 5000K

Search across all available documentation for this part.

Active

TECHNO LED LIGHTS

LED MOD WHITE ROUND 5000K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TL-SPL1R6-12W-5CCT	TL-SPL1R Series

CCT (K)	5000 K, 2700 K, 3500 K, 3000 K, 4000 K	2700 - 5000 K
Color	White, Neutral, White, Cool, White, Warm	White, Neutral, White, Cool, White, Warm
Configuration	Plug and Play, Round	Plug and Play, Round
CRI (Color Rendering Index)	80	80
Current - Test	90 mA	90 mA
Height [z]	23.88 mm	23.88 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	102 lm/W	102 lm/W
Luminous Flux @ Current/Temperature	1100 lm	1100 lm
Size / Dimension [diameter]	172.97 mm	172.97 mm
Type	LED Module	LED Module
Viewing Angle	110 °	110 °
Voltage - Forward (Vf) (Typ)	120 V	120 V

TECHNO LED 6 INCH ULTRA-THIN LED

Part	Type	Height [z]	Color	Viewing Angle	Size / Dimension [diameter]	Lens Type	Configuration	Lumens/Watt @ Current - Test	Current - Test	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	CCT (K)	CRI (Color Rendering Index)
TECHNO LED LIGHTS TL-SPL1R6-9W-5CCT	LED Module
TECHNO LED LIGHTS TL-SPL1R6-12W-5CCT	LED Module	23.88 mm	White, Cool, White, Neutral, White, Warm	110 °	172.97 mm	Flat	Plug and Play, Round	102 lm/W	90 mA	120 V	1100 lm	2700 K, 3000 K, 3500 K, 4000 K, 5000 K	80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 148.49

General part information

LED Lighting COBs Engines Modules LED Module - White, Warm / White, Neutral / White, Cool Round, Plug and Play
