000-6775-75

Active

AMPHENOL RF

CONN BNC PLUG STR 75 OHM SOLDER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC PLUG STR 75 OHM SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 34.20

General part information

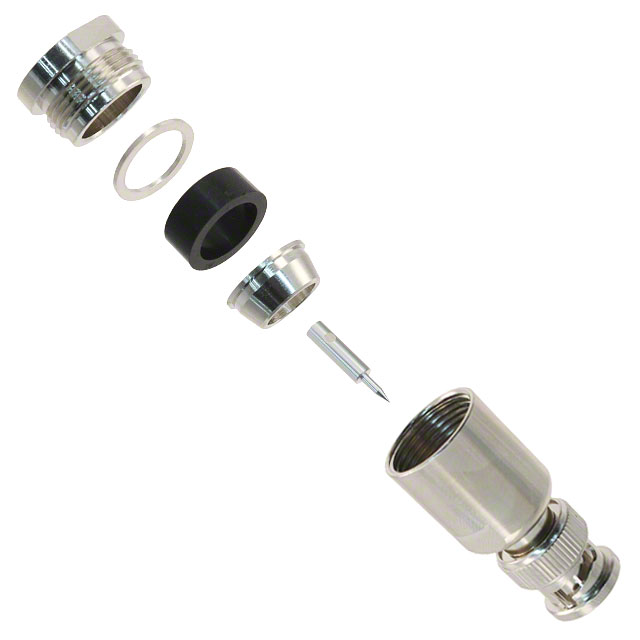

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	000-6775-75	000-67 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	213, 214, 393, 225, 9, 8A, 87A, RG-8	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393, 87A
Center Contact Material	Brass	Brass
Center Contact Plating	Silver	Silver
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	75 Ohms	50 - 75 Ohms
Includes	1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp	1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp
Ingress Protection	Weatherproof	Weatherproof
Insertion Loss	-	0.2 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Clamp
Voltage Rating	500 V	500 V

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, SOLDER, 50 OHM

Part	Mating Cycles	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Insertion Loss	Voltage Rating	Body Material	Frequency - Max [Max]	Mounting Type	Connector Type	Cable Group	Ingress Protection	Fastening Type	Connector Style	Center Contact Plating	Housing Color	Shield Termination	Impedance	Center Contact Material	Includes	Dielectric Material	Body Finish
AMPHENOL RF 000-6775	500	1	-65 ░C	165 °C	Solder	0.2 dB	500 V	Brass	4 GHz	Free Hanging (In-Line)	Male Pin, Plug	213, 214, 225, 302, 393, 87, 8A, 9, 9A, 9B, RG-8	Weatherproof	Bayonet Lock	BNC	Silver	Silver	Clamp	50 Ohms	Brass	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer	Polytetrafluoroethylene (PTFE)	Nickel
AMPHENOL RF 000-6775-75	500	1	-65 ░C	165 °C	Solder		500 V	Brass	4 GHz	Free Hanging (In-Line)	Male Pin, Plug	213, 214, 225, 393, 87A, 8A, 9, RG-8	Weatherproof	Bayonet Lock	BNC	Silver	Silver	Clamp	75 Ohms	Brass	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer	Polytetrafluoroethylene (PTFE)	Nickel
