Q-030680003024i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-BNC PLUG-JACK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-030680003024i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-BNC PLUG-JACK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-030680003024i

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	BNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	RP-SMA to BNC

Q-030680 Series

Part	Style	Cable Type	Length	Length	Length	1st Connector	Overall Impedance	2nd Connector	2nd Contact Gender	Frequency - Max [Max]	Color	2nd Connector Mounting Type	1st Connector Mounting Type	1st Contact Gender	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-030680005002M	RP-SMA to BNC	RG-316	6.6 ft	78.7 in	2 m	RP-SMA Plug	50 Ohms	BNC Jack	Female	4 GHz	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded
Amphenol Custom Cable Q-030680003024i	RP-SMA to BNC	RG-174		24 "	609.6 mm	RP-SMA Plug	50 Ohms	BNC Jack	Female	4 GHz	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded
Amphenol Custom Cable Q-030680005001M	RP-SMA to BNC	RG-316	3.3 ft	39.4 in	1 m	RP-SMA Plug	50 Ohms	BNC Jack	Female	4 GHz	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded
Amphenol Custom Cable Q-030680005072i	RP-SMA to BNC	RG-316	6 ft	72 in	1.8 m	RP-SMA Plug	50 Ohms	BNC Jack	Female	4 GHz	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded
Amphenol Custom Cable Q-030680005012i	RP-SMA to BNC	RG-316		12 "	304.8 mm	RP-SMA Plug	50 Ohms	BNC Jack	Female	4 GHz	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded
Amphenol Custom Cable Q-030680005003i	RP-SMA to BNC	RG-316		3 in	76.2 mm	RP-SMA Plug	50 Ohms	BNC Jack	Female	4 GHz	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded
Amphenol Custom Cable Q-030680005006i	RP-SMA to BNC	RG-316		6 in	152.4 mm	RP-SMA Plug	50 Ohms	BNC Jack	Female	4 GHz	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded
Amphenol Custom Cable Q-030680005009i	RP-SMA to BNC	RG-316		9 "	228.6 mm	RP-SMA Plug	50 Ohms	BNC Jack	Female	4 GHz	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded
Amphenol Custom Cable Q-030680003018i	RP-SMA to BNC	RG-174				RP-SMA Plug	50 Ohms	BNC Jack	Female	4 GHz	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded	457.2 mm	457.2 mm
Amphenol Custom Cable Q-030680005048i	RP-SMA to BNC	RG-316	4 ft	48 in	1200 mm	RP-SMA Plug	50 Ohms	BNC Jack	Female	4 GHz	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 57.52
		25	$ 56.40
		50	$ 55.28
		100	$ 54.16
		250	$ 53.03

Description

General part information

Q-030680 Series

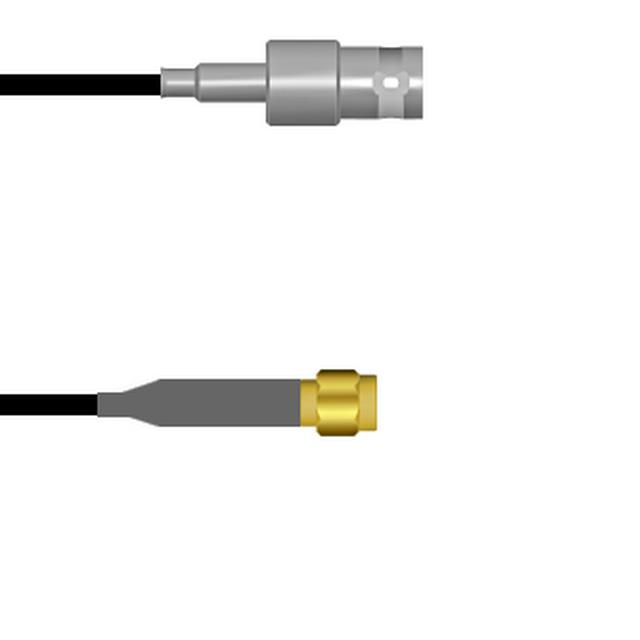

Cable Assembly Coaxial RP-SMA to BNC RG-174 24.00" (609.60mm)
