4702-24-0

Active

Pomona Electronics

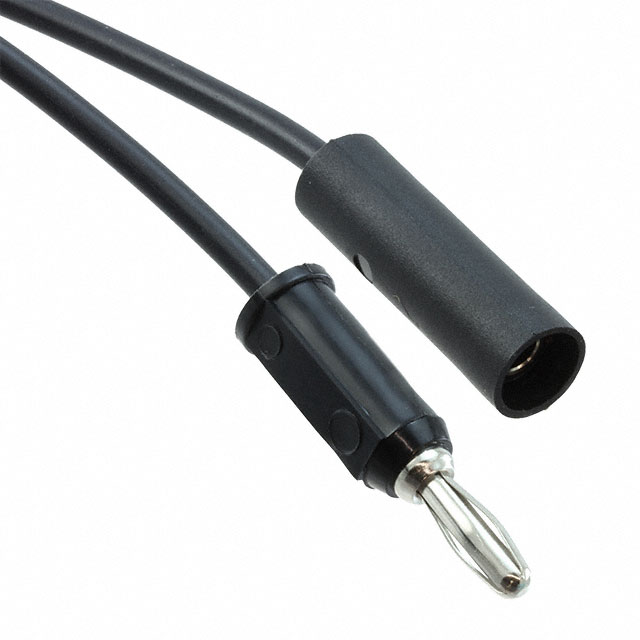

TEST LEAD BANANA TO BANANA 24"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD BANANA TO BANANA 24"

Technical Specifications

Parameters and characteristics for this part

Specification	4702-24-0

1st Connector	Banana Plug, Single
2nd Connector	Banana Socket (Jack), Single, Sheathed
Cable Length	24 "
Cable Length	609.6 mm
Configuration	Banana to Banana
Contents	1 Lead, Black
Current Rating (Amps)	15 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Non Stackable
Type	Patch Cord
Voltage - Rated	5 kV
Voltage - Rated	5 kV
Wire Gauge	18 AWG

Part	Contents	Current Rating (Amps)	Material - Insulation	Voltage - Rated	Voltage - Rated	Configuration	Cable Length	Cable Length	1st Connector	Wire Gauge	Stacking Method	Type	2nd Connector
Pomona Electronics 4702-48-0	1 Lead Black	15 A	Poly-Vinyl Chloride (PVC)	5 kV	5 kV	Banana to Banana	48 in	1219.2 mm	Banana Plug Single	18 AWG	Non Stackable	Patch Cord	Banana Socket (Jack) Single Sheathed
Pomona Electronics 4702-24-0	1 Lead Black	15 A	Poly-Vinyl Chloride (PVC)	5 kV	5 kV	Banana to Banana	24 "	609.6 mm	Banana Plug Single	18 AWG	Non Stackable	Patch Cord	Banana Socket (Jack) Single Sheathed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24.0" (609.60mm) Banana Plug, Single To Banana Socket (Jack), Single, Sheathed Patch Cord 5000VDC (5kV)
