TB67S539FTG(O,EL)
ActiveToshiba Semiconductor and Storage
40V/2A 32 MICRO-STEP STEPPING MO
Deep-Dive with AI
Search across all available documentation for this part.
TB67S539FTG(O,EL)
ActiveToshiba Semiconductor and Storage
40V/2A 32 MICRO-STEP STEPPING MO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TB67S539FTG(O,EL) |
|---|---|
| Applications | General Purpose |
| Current - Output | 2 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | PWM |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (4) |

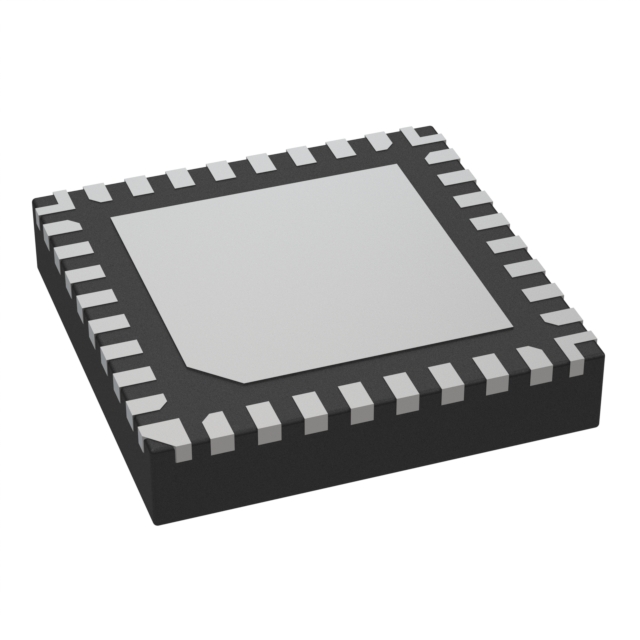

| Package / Case | 32-VFQFN Exposed Pad |
| Step Resolution | 0.125, 0.03125, 0.25, 1, 0.5, 0.0625 |
| Supplier Device Package | 32-VQFN (5x5) |
| Technology | NMOS |
| Voltage - Load [Max] | 34 V |
| Voltage - Load [Min] | 4.5 V |
| Voltage - Supply | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.74 | |
| 10 | $ 1.73 | |||
| 25 | $ 1.47 | |||
| 100 | $ 1.17 | |||
| 250 | $ 1.02 | |||
| 500 | $ 0.93 | |||
| 1000 | $ 0.85 | |||
| Digi-Reel® | 1 | $ 2.74 | ||
| 10 | $ 1.73 | |||
| 25 | $ 1.47 | |||
| 100 | $ 1.17 | |||
| 250 | $ 1.02 | |||
| 500 | $ 0.93 | |||
| 1000 | $ 0.85 | |||
| Tape & Reel (TR) | 4000 | $ 0.75 | ||
Description
General part information
TB67S539 Series
Bipolar Motor Driver NMOS PWM 32-VQFN (5x5)
Documents
Technical documentation and resources
No documents available
