H8MMS-4036G

Active

Assmann WSW Components

DIP CBL - HHDM40S/AE40G/HHDM40S

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CBL - HHDM40S/AE40G/HHDM40S

Technical Specifications

Parameters and characteristics commom to parts in this series

DIP CBL - HHDM40S/AE40G/HHDM40S

Part	Usage	Connector Type	Number of Positions	Number of Rows	Length	Length	Length	Shielding	Pitch - Cable	Pitch - Cable	Cable Termination	Contact Finish	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Color
Assmann WSW Components H8MMS-4006G	Board In, Socket (0.1")	DIP to DIP, Reversed	40	2	152.4 mm	6 "	0.5 '	Unshielded	0.05 "	1.27 mm	IDC	Tin	0.1 in	2.54 mm
Assmann WSW Components H8MMS-4036M	Board In, Socket (0.1")	DIP to DIP, Reversed	40	2				Unshielded	0.05 "	1.27 mm	IDC	Tin	0.1 in	2.54 mm	3 ft	914.4 mm	Multiple, Ribbon
Assmann WSW Components H8MMS-4036G	Board In, Socket (0.1")	DIP to DIP, Reversed	40	2				Unshielded	0.05 "	1.27 mm	IDC	Tin	0.1 in	2.54 mm	3 ft	914.4 mm
Assmann WSW Components H8MMS-4018G	Board In, Socket (0.1")	DIP to DIP, Reversed	40	2				Unshielded	0.05 "	1.27 mm	IDC	Tin	0.1 in	2.54 mm	1.5 ft	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

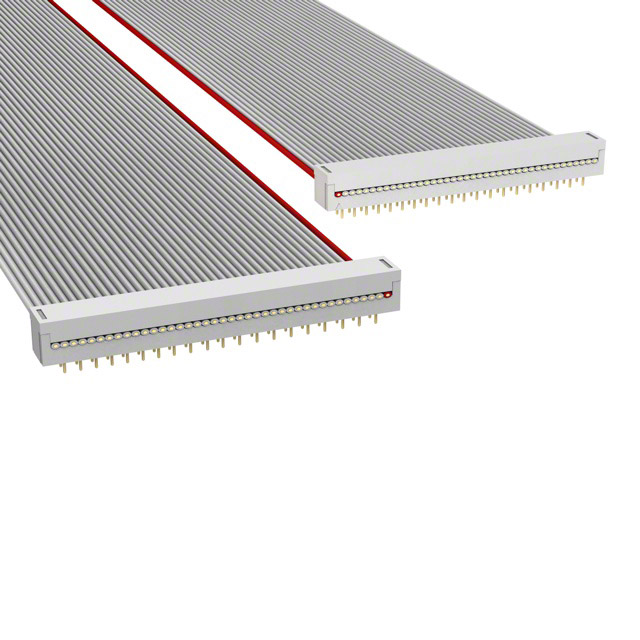

40 Position Cable Assembly Rectangular DIP to DIP, Reversed 3.00' (914.40mm)
