1408483-1

Active

TE Connectivity AMP Connectors

CBL ASSY MMCX-SSMT PL-JK 3.937"

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CBL ASSY MMCX-SSMT PL-JK 3.937"

Technical Specifications

Parameters and characteristics for this part

CBL ASSY MMCX-SSMT PL-JK 3.937"

Part	Length [x]	Length [x]	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Contact Gender	2nd Connector	Overall Impedance	Style	Frequency - Max [Max]	Features	Cable Type [diameter]	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	1st Contact Gender
TE Connectivity AMP Connectors 1408483-1	0.1 m	3.937 in	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	SSMT Jack, Right Angle	50 Ohms	MMCX to SSMT	6000 MHz	Shielded	1.3 mm	Coaxial Cable	125 °C	-40 °C	Blue	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 12.65

General part information

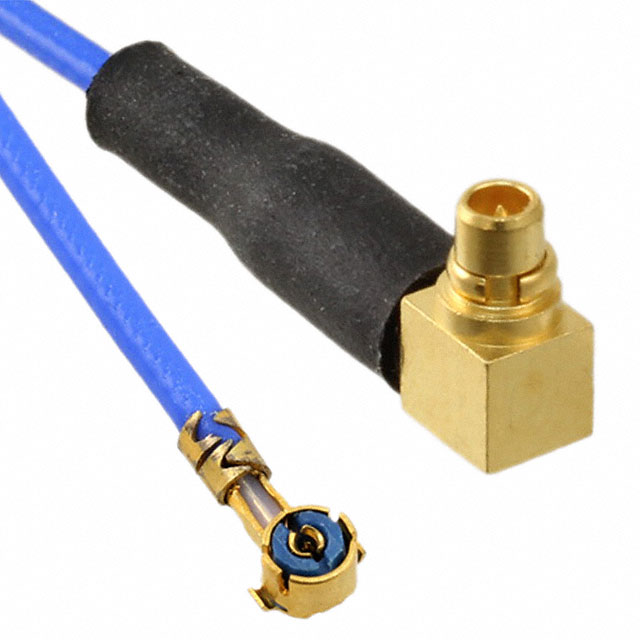

Cable Assembly Coaxial MMCX to SSMT 1.30mm OD Coaxial Cable 3.937" (100.00mm)

Technical documentation and resources
