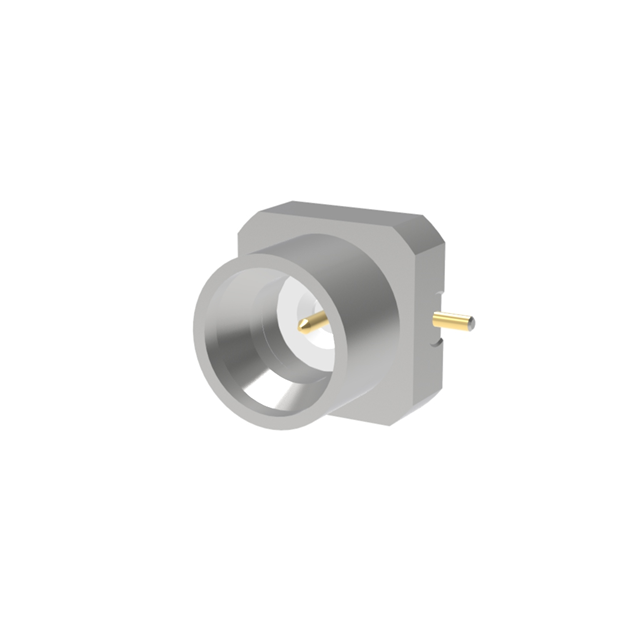

TM14-0053-00TR

Active

CarlisleIT

SMPM STR, PLUG R/A CONTACT

Search across all available documentation for this part.

Active

CarlisleIT

SMPM STR, PLUG R/A CONTACT

Technical Specifications

Parameters and characteristics for this part

Specification	TM14-0053-00TR

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	65 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount, Right Angle
Number of Ports	1
Shield Termination	Solder
Voltage Rating	325 V

SMPM STR, PLUG R/A CONTACT

Part	Impedance	Mounting Type	Connector Type	Dielectric Material	Body Finish	Fastening Type	Shield Termination	Contact Termination	Frequency - Max [Max]	Body Material	Center Contact Material	Housing Color	Features	Voltage Rating	Center Contact Plating	Connector Style	Number of Ports
CarlisleIT TM14-0053-00TR	50 Ohms	Surface Mount, Right Angle	Male Pin, Receptacle	Polytetrafluoroethylene (PTFE)	Gold	Snap-On	Solder	Solder	65 GHz	Brass	Brass	Gold	Full Detent	325 V	Gold	SMPM	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMPM Connector Receptacle, Male Pin 50 Ohms Surface Mount, Right Angle Solder
