2903704
ActivePhoenix Contact

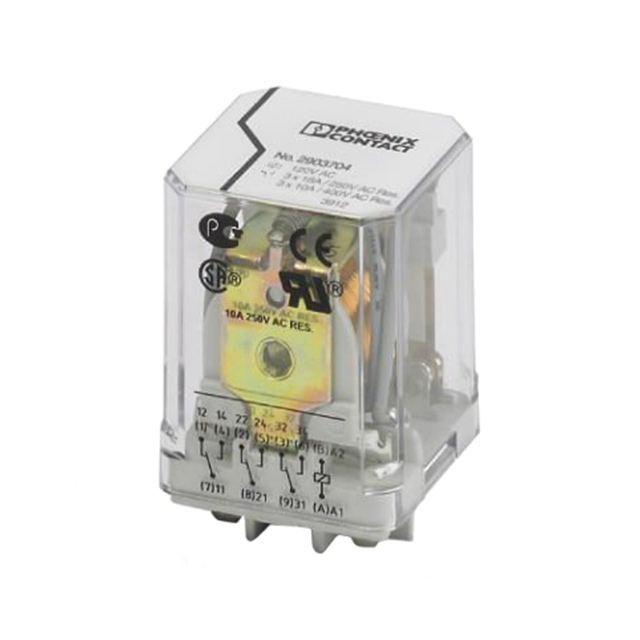

RELAY GEN PURPOSE 3PDT 16A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2903704
ActivePhoenix Contact
RELAY GEN PURPOSE 3PDT 16A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2903704 | 29037 Series |
|---|---|---|
| Approval Agency | cULus, CSA, EAC, UL | EAC, UR, CSA, cURus, cULus, UL |
| Coil Current | 23 mA | 12 - 116 mA |
| Coil Resistance | 5.22 kOhms | 5.22 - 429 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 120 VAC | 24 - 230 VAC |
| Contact Form | 3PDT (3 Form C) | DPDT (2 Form C), 3PST-NO (3 Form A), 3PDT (3 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 16 A | 16 A |
| Load - Max Switching | 4000 W, 7040 VA | 4000 - 7040 W |
| Mounting Type | Socketable | Socketable |
| Operate Time | 25 ms | 20 - 25 ms |
| Operating Temperature [Max] | 55 °C | 55 - 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 20 ms | 15 - 20 ms |
| Termination Style | Plug In | Plug In |
29037 Series
RELAY GEN PURPOSE DPDT 16A 120V
| Part | Contact Form | Termination Style | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Contact Rating (Current) | Release Time | Contact Material | Load - Max Switching | Coil Current | Relay Type | Mounting Type | Coil Resistance | Coil Type | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2903700 | DPDT (2 Form C) | Plug In | CSA, cURus, EAC, UR | -40 °C | 55 °C | 25 ms | 16 A | 20 ms | Silver Nickel (AgNi) | 4000 W, 7040 VA | 23 mA | General Purpose | Socketable | 5.22 kOhms | Non Latching | 120 VAC |
Phoenix Contact 2903706 | 3PST-NO (3 Form A) | Plug In | CSA, cULus, EAC, UL | -40 °C | 70 °C | 20 ms | 16 A | 15 ms | Silver Nickel (AgNi) | 4000 W, 7040 VA | 70 mA | General Purpose | Socketable | 343 Ohms | Non Latching | 24 VDC |
Phoenix Contact 2903709 | 3PST-NO (3 Form A) | Plug In | CSA, cULus, EAC, UL | -40 °C | 55 °C | 25 ms | 16 A | 20 ms | Silver Nickel (AgNi) | 4000 W, 7040 VA | 12 mA | General Purpose | Socketable | 19.17 kOhms | Non Latching | 230 VAC |
Phoenix Contact 2903704 | 3PDT (3 Form C) | Plug In | CSA, cULus, EAC, UL | -40 °C | 55 °C | 25 ms | 16 A | 20 ms | Silver Nickel (AgNi) | 4000 W, 7040 VA | 23 mA | General Purpose | Socketable | 5.22 kOhms | Non Latching | 120 VAC |
Phoenix Contact 2903701 | DPDT (2 Form C) | Plug In | CSA, cURus, EAC, UR | -40 °C | 55 °C | 25 ms | 16 A | 20 ms | Silver Nickel (AgNi) | 4000 W, 7040 VA | 12 mA | General Purpose | Socketable | 19.17 kOhms | Non Latching | 230 VAC |
Phoenix Contact 2903707 | 3PST-NO (3 Form A) | Plug In | CSA, cULus, EAC, UL | -40 °C | 55 °C | 25 ms | 16 A | 20 ms | Silver Nickel (AgNi) | 4000 W, 7040 VA | 116 mA | General Purpose | Socketable | 207 Ohms | Non Latching | 24 VAC |
Phoenix Contact 2903708 | 3PST-NO (3 Form A) | Plug In | CSA, cULus, EAC, UL | -40 °C | 55 °C | 25 ms | 16 A | 20 ms | Silver Nickel (AgNi) | 4000 W, 7040 VA | 23 mA | General Purpose | Socketable | 5.22 kOhms | Non Latching | 120 VAC |
Phoenix Contact 2903703 | 3PDT (3 Form C) | Plug In | CSA, cULus, EAC, UL | -40 °C | 55 °C | 25 ms | 16 A | 20 ms | Silver Nickel (AgNi) | 4000 W, 7040 VA | 116 mA | General Purpose | Socketable | 207 Ohms | Non Latching | 24 VAC |
Phoenix Contact 2903705 | 3PDT (3 Form C) | Plug In | CSA, cULus, EAC, UL | -40 °C | 55 °C | 25 ms | 16 A | 20 ms | Silver Nickel (AgNi) | 4000 W, 7040 VA | 12 mA | General Purpose | Socketable | 19.17 kOhms | Non Latching | 230 VAC |
Phoenix Contact 2903702 | 3PDT (3 Form C) | Plug In | CSA, cULus, EAC, UL | -40 °C | 70 °C | 20 ms | 16 A | 15 ms | Silver Nickel (AgNi) | 4000 W, 7040 VA | 56 mA | General Purpose | Socketable | 429 Ohms | Non Latching | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 11.98 | |
Description
General part information
29037 Series
General Purpose Relay 3PDT (3 Form C) 120VAC Coil Socketable
