1915-3-300-16
ActiveKendall Howard

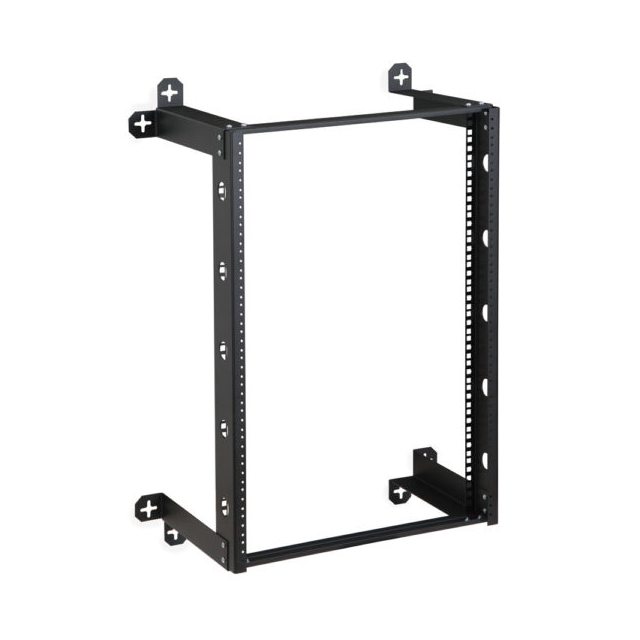

16U V-LINE FIXED WALL RACK
Deep-Dive with AI
Search across all available documentation for this part.
1915-3-300-16
ActiveKendall Howard
16U V-LINE FIXED WALL RACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1915-3-300-16 | 1915-3 Series |
|---|---|---|
| Color | Black | Black |
| Dimensions - Overall | - | 437.64 - 1012.95 mm |
| Dimensions - Overall | - | 304.8 - 524.51 mm |
| Dimensions - Overall [x] | 21.5 " | 21.5 - 22.22 " |
| Dimensions - Overall [x] | 546.1 mm | 546.1 - 564.39 mm |
| Dimensions - Overall [y] | 12 in | 12 - 20.65 in |
| Dimensions - Overall [y] | 304.8 mm | 304.8 mm |
| Dimensions - Overall [z] | 790.45 mm | 790.45 mm |
| Dimensions - Overall [z] | 31.12 " | 17.23 - 39.88 " |
| Door | Doorless | Doorless, Acrylic |
| Material | Cold Roll Steel (CRS) | Cold Roll Steel (CRS) |
| Mounting Rails | Two Pair | Two Pair, One Pair |
| Number of Units | 16 U | 12 - 21 U |
| Number of Units | - | 8U |
| Style | Open Rack, Double Frame | Open Rack, Double Frame, Bottom, Enclosed, Sides, Front, Top, Single Frame, Open Rack |
| Type | Open Rack | Open Rack, Cabinet Rack |
| Ventilation | Non-Vented | Non-Vented, Vented |
| Weight | 5.4 kg | 4.7 - 20 kg |
| Weight | 12 lbs | 10.3 - 44.3 lbs |
1915-3 Series
16U 18" V-LINE FIXED WALL RACK
| Part | Type | Mounting Rails | Door | Ventilation | Weight | Weight | Dimensions - Overall [z] | Dimensions - Overall [z] | Dimensions - Overall [x] | Dimensions - Overall [y] | Dimensions - Overall [y] | Dimensions - Overall [x] | Material | Color | Style | Number of Units | Dimensions - Overall [z] | Dimensions - Overall [y] | Number of Units |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kendall Howard 1915-3-301-16 | Open Rack | Two Pair | Doorless | Non-Vented | 6.1 kg | 13.5 lbs | 790.7 mm | 31.13 " | 21.5 " | 18 in | 457.2 mm | 546.1 mm | Cold Roll Steel (CRS) | Black | Open Rack, Double Frame | 16 U | |||
Kendall Howard 1915-3-301-21 | Open Rack | Two Pair | Doorless | Non-Vented | 7 kg | 15.5 lbs | 1012.95 mm | 39.88 in | 21.5 " | 18 in | 457.2 mm | 546.1 mm | Cold Roll Steel (CRS) | Black | Open Rack, Double Frame | 21 U | |||
Kendall Howard 1915-3-200-12 | Cabinet Rack | Two Pair | Doorless | Vented | 17 kg | 37.5 lbs | Cold Roll Steel (CRS) | Black | Bottom, Enclosed, Front, Sides, Top | 12 U | |||||||||
Kendall Howard 1915-3-300-16 | Open Rack | Two Pair | Doorless | Non-Vented | 5.4 kg | 12 lbs | 31.12 " | 21.5 " | 12 in | 546.1 mm | Cold Roll Steel (CRS) | Black | Open Rack, Double Frame | 16 U | 790.45 mm | 304.8 mm | |||
Kendall Howard 1915-3-300-12 | Open Rack | Two Pair | Doorless | Non-Vented | 4.7 kg | 10.3 lbs | 612.9 mm | 24.13 in | 21.5 " | 12 in | 304.8 mm | 546.1 mm | Cold Roll Steel (CRS) | Black | Open Rack, Double Frame | 12 U | |||
Kendall Howard 1915-3-100-08 | Cabinet Rack | One Pair | Acrylic | Vented | 20 kg | 44.3 lbs | 437.64 mm | 17.23 in | 22.22 in | 20.65 in | 524.51 mm | 564.39 mm | Cold Roll Steel (CRS) | Black | Bottom, Enclosed, Front, Sides, Top | 8U | |||
Kendall Howard 1915-3-300-21 | Open Rack | Two Pair | Doorless | Non-Vented | 6.2 kg | 13.8 lbs | 1012.95 mm | 39.88 in | 21.5 " | 12 in | 304.8 mm | 546.1 mm | Cold Roll Steel (CRS) | Black | Open Rack, Double Frame | 21 U | |||
Kendall Howard 1915-3-301-12 | Open Rack | Two Pair | Doorless | Non-Vented | 5.4 kg | 12 lbs | 612.9 mm | 24.13 in | 21.5 " | 18 in | 457.2 mm | 546.1 mm | Cold Roll Steel (CRS) | Black | Open Rack, Double Frame | 12 U | |||
Kendall Howard 1915-3-001-08 | Open Rack | Two Pair | Doorless | Non-Vented | 5 kg | 11.1 lbs | Cold Roll Steel (CRS) | Black | Open Rack, Single Frame | 8U |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 134.99 | |
| 2 | $ 132.99 | |||
| 4 | $ 130.99 | |||
Description
General part information
1915-3 Series
Cold Roll Steel (CRS) Open Rack Open Rack, Double Frame 21.500" L x 12.000" W x 31.120" H (546.10mm x 304.80mm x 790.45mm) Black
