TWINAX RG-22B/ 18AWG 95 OHM

Search across all available documentation for this part.

Active

Belden Inc.

TWINAX RG-22B/ 18AWG 95 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	9250 010500

Cable Group	RG-22B
Cable Type	Twinaxial
Conductor Material	Copper, Bare
Conductor Strand	26 AWG
Conductor Strand [custom]	7
Impedance	95 Ohms
Jacket (Insulation) Diameter [diameter]	10.57 mm
Jacket (Insulation) Diameter [diameter]	0.416 "
Jacket (Insulation) Material	Non Contaminating Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Double Braid
Wire Gauge [custom]	2
Wire Gauge [custom]	18 AWG

Part	Shield Type	Wire Gauge [custom]	Wire Gauge [custom]	Conductor Material	Jacket (Insulation) Material	Impedance	Shield Coverage	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Conductor Strand	Conductor Strand [custom]	Cable Group	Shield Material
Belden Inc. 9250 010500	Double Braid	2	18 AWG	Copper Bare	Non Contaminating Poly-Vinyl Chloride (PVC)	95 Ohms	95 %	Twinaxial	-40 °C	80 C	Black	10.57 mm	0.416 "	152.4 m	6000 in	26 AWG	7	RG-22B	Copper Tinned
Belden Inc. 9250 0101000	Double Braid	2	18 AWG	Copper Bare	Non Contaminating Poly-Vinyl Chloride (PVC)	95 Ohms	95 %	Twinaxial	-40 °C	80 C	Black	10.57 mm	0.416 "	304.8 m	1000 ft	26 AWG	7	RG-22B	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 8.86

General part information

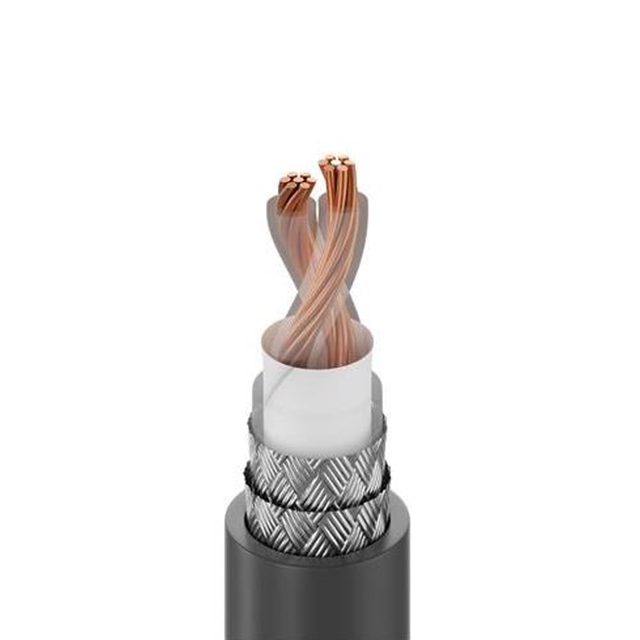

Twinaxial Cable 18 AWG (2) RG-22B 500.0' (152.40m) 95 Ohms
