CBS-TM-4-01
ActiveEssentra Access Solutions

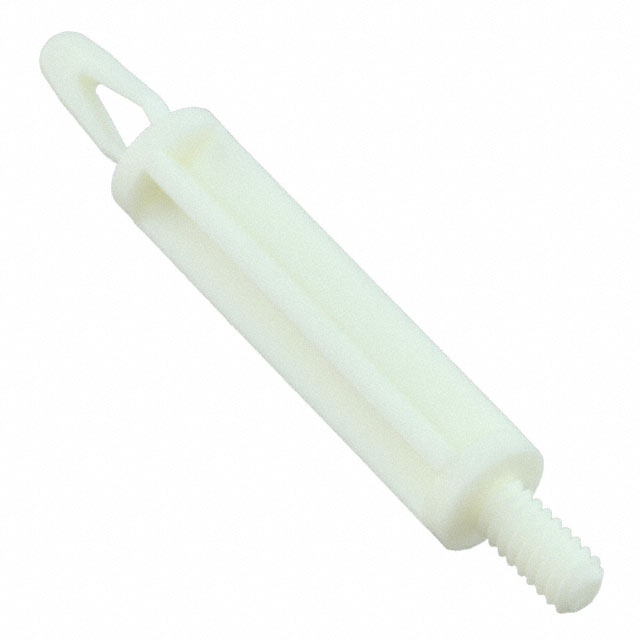

CBS THREAD MALE 1/4" NYLON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CBS-TM-4-01
ActiveEssentra Access Solutions
CBS THREAD MALE 1/4" NYLON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CBS-TM-4-01 |
|---|---|
| Between Board Height | 6.35 mm |
| Between Board Height | 0.25 in |
| Between Board Height | 0.25 in |
| Features | 6-32 Thread |
| Holding Type | Snap Lock |
| Length - Overall [x] | 24.21 mm |
| Length - Overall [x] | 0.953 in |
| Material | Nylon |
| Mounting Type | Threaded Stud |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.56 | |
| 5 | $ 0.48 | |||
| 10 | $ 0.40 | |||
| 25 | $ 0.37 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.27 | |||
Description
General part information
CBS-TM Series
Board Support Snap Lock / Threaded Stud Nylon 0.250" (6.35mm) 1/4"
