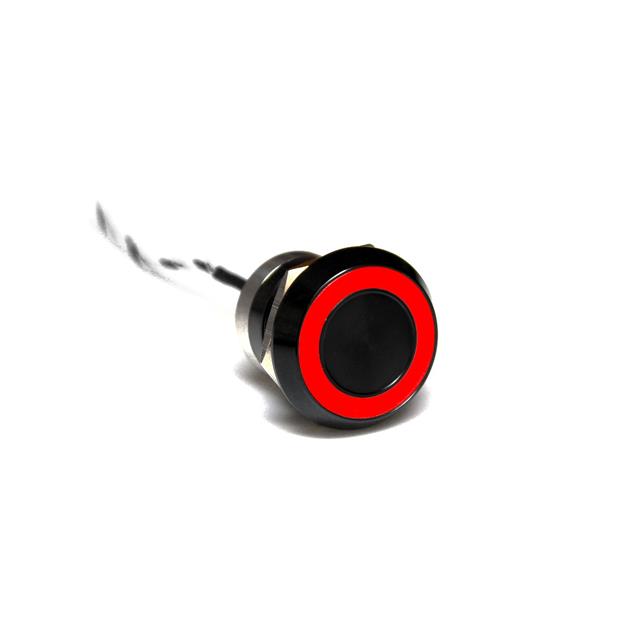

MC22LCBRD

Active

BULGIN LIMITED

SWITCH CAPACITIVE DPST ON-OFF

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH CAPACITIVE DPST ON-OFF

Technical Specifications

Parameters and characteristics for this part

Specification	MC22LCBRD

Actuator Type	Flush, Button, Round
Circuit	SPST-NC
Color - Actuator/Cap	Black
Current Rating (Amps)	500 mA
Electrical Life	50000000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP68, IP69K
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.2 mm
Switch Function	On-Off
Termination Style	Wire Leads
Type	Capacitive, Illuminated
Voltage Rating - DC	24 V

Part	Mechanical Life	Illumination Voltage (Nominal)	Switch Function	Color - Actuator/Cap	Termination Style	Circuit	Mounting Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Type	Actuator Type	Ingress Protection	Electrical Life
BULGIN LIMITED MC22LCBRD	50000000 Cycles	12 VDC	On-Off	Black	Wire Leads	SPST-NC	Panel Mount Front	24 V	55 °C	-25 °C	500 mA	22.2 mm	LED Red	Capacitive Illuminated	Button Flush Round	IP68 IP69K	50000000 Cycles
BULGIN LIMITED MC22LCBGN	50000000 Cycles	12 VDC	On-Off	Black	Wire Leads	SPST-NC	Panel Mount Front	24 V	55 °C	-25 °C	500 mA	22.2 mm	Green LED	Capacitive Illuminated	Button Flush Round	IP68 IP69K	50000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 44.66

General part information

Pushbutton Switch SPST-NC Capacitive, Illuminated Panel Mount, Front
