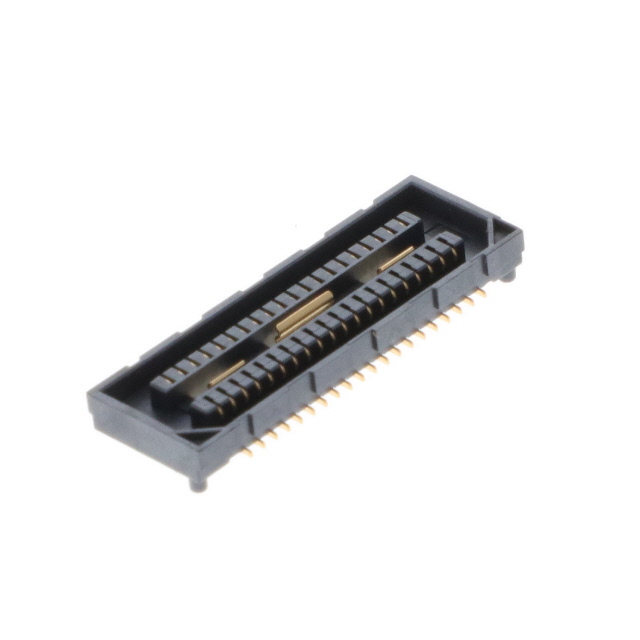

BB8H-SC-040-G-2.05-HF-T/R

Active

Adam Tech

CONN SOCKET 40POS SMD GOLD

Search across all available documentation for this part.

Active

Adam Tech

CONN SOCKET 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BB8H-SC-040-G-2.05-HF-T/R

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Height Above Board	0.079 in
Height Above Board	2 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Mounting Type	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Connector Type	Number of Rows	Pitch [x]	Pitch [x]
Adam Tech BB8H-SC-040-G-2.05-HF-T/R	Surface Mount	40	Gold	8 çin	0.203 çm	0.079 in	2 mm	Socket Center Strip Contacts	2	0.8 mm	0.031 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector Socket, Center Strip Contacts Surface Mount Gold
