2111-1X05G00SB

Active

Oupiin

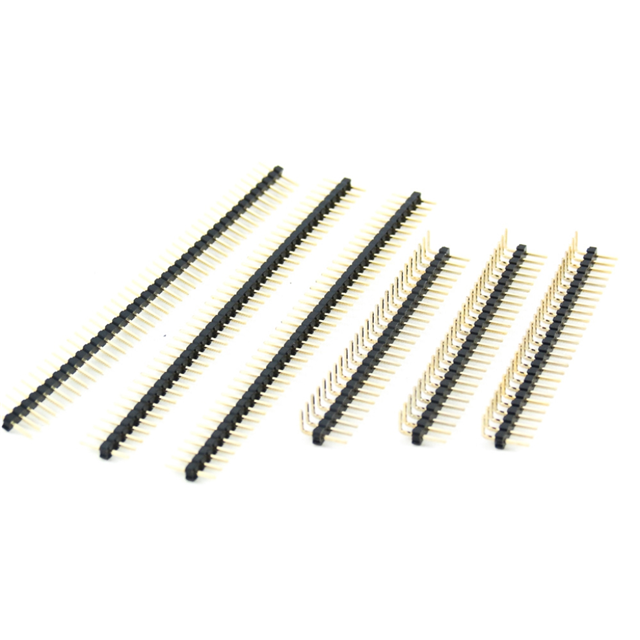

PIN HEADER, SINGLE ROW, 5 PIN, S

Deep-Dive with AI

Search across all available documentation for this part.

2111-1X05G00SB

Active

Oupiin

PIN HEADER, SINGLE ROW, 5 PIN, S

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.11

Description

General part information

2111 Series

Connector Header Through Hole 5 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2111-1X05G00SB	2111 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating	3.7 mm	0.217 - 6.4 mm
Contact Length - Mating	0.146 in	0.126 - 0.252 in
Contact Length - Mating	-	5.5 mm
Contact Length - Post	0.118 in	0.098 - 0.146 in
Contact Length - Post	3 mm	2.5 - 3.7 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	1.5 mm	1.5 - 2.2 mm
Insulation Height	0.059 "	0.059 - 0.087 "
Insulation Height	-	0.157 in
Insulation Height	-	4 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	-	2 - 60
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	1	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Contact Length	8.2 mm	8.2 mm
Overall Contact Length	0.323 in	0.323 - 11.6 in
Overall Contact Length	-	9.5 mm
Overall Contact Length	-	0.374 in
Overall Contact Length	-	0.457 "
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Mating	-	0.079 in
Pitch - Mating	-	2 mm
Row Spacing - Mating	-	0.079 in
Row Spacing - Mating	-	2 mm
Shrouding	Unshrouded	Unshrouded
Termination	Solder	Solder
Voltage Rating	125 VDC	125 VDC

2111 Series

PIN HEADER, DOUBLE ROW, 10 PIN,

Part	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Connector Type	Contact Shape	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Contact Material	Shrouding	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Termination	Number of Rows	Material Flammability Rating	Mounting Type	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Material	Voltage Rating	Insulation Color	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Contact Finish Thickness - Post	Fastening Type	Insulation Height [custom]	Insulation Height [custom]	Number of Positions	Pitch - Mating	Pitch - Mating
Oupiin 2111-2X05G00SB	0.079 in	2 mm	10	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	2	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "	0.079 in	2 mm	All	Flash	Push-Pull
Oupiin 2111-2X11G00SB	0.079 in	2 mm	22 positions	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	2	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "	0.079 in	2 mm	All	Flash	Push-Pull
Oupiin 2111-2X06G00SB	0.079 in	2 mm	12	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	2	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "	0.079 in	2 mm	All	Flash	Push-Pull
Oupiin 2111-2X13G00SB	0.079 in	2 mm	26	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	2	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "	0.079 in	2 mm	All	Flash	Push-Pull
Oupiin 2111-2X05G00RB	0.079 in	2 mm	10	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C			Gold	Solder	2	UL94 V-0	Through Hole, Right Angle	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash			0.079 in	2 mm	All	Flash	Push-Pull	0.157 in	4 mm
Oupiin 2111-2X08G00SB	0.079 in	2 mm		Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	2	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "	0.079 in	2 mm	All	Flash	Push-Pull			16
Oupiin 2111-2X03G00SB	0.079 in	2 mm	6	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	2	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "	0.079 in	2 mm	All	Flash	Push-Pull
Oupiin 2111-1X06G00SB			6	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	1	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "			All	Flash	Push-Pull				0.1 in	2.54 mm
Oupiin 2111-1X02G00SB			2	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	1	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "			All	Flash	Push-Pull				0.1 in	2.54 mm
Oupiin 2111-1X03G00SB				Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	1	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "			All	Flash	Push-Pull				0.1 in	2.54 mm
