QAE150-48S48

Active

P-DUKE Technology

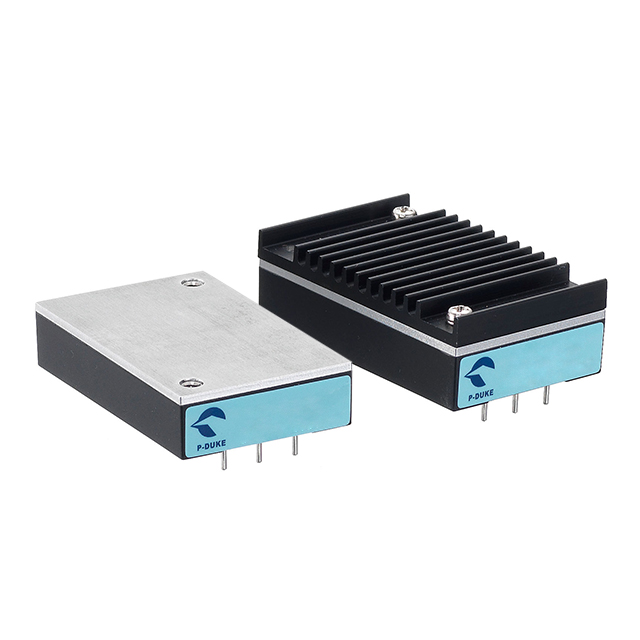

DC DC CONVERTER 48V 144W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QAE150-48S48

Active

P-DUKE Technology

DC DC CONVERTER 48V 144W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

QAE150 Series

Isolated Module DC DC Converter 1 Output 48V 3A 33V - 75V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QAE150-48S48	QAE150 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, cURus, CE	CB, cURus, CE
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	3 A	3 - 8.6 A
Efficiency	92 %	88 - 92 %
Features	Baseplate, Remote On/Off, Remote Sense, Standby Output, Adjustable Output	Baseplate, Remote On/Off, Remote Sense, Standby Output, Adjustable Output
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	105 C	105 C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Quarter Brick	Quarter Brick
Power (Watts)	144 W	120 - 144 W
Size / Dimension [x]	57.9 mm	57.9 mm
Size / Dimension [x]	2.28 in	2.28 in
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [z]	12.7 mm	12.7 mm
Size / Dimension [z]	0.5 in	0.5 in
Standard Number	62368-1	62368-1
Supplier Device Package	Quarter Brick	Quarter Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	36 - 160 V
Voltage - Input (Min) [Min]	33 V	8.5 - 40 V
Voltage - Isolation	2250 VDC	2250 - 3000 V
Voltage - Output 1	48 V	15 - 48 V

QAE150 Series

DC DC CONVERTER 24V 132W

Part	Power (Watts)	Package / Case	Supplier Device Package	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Type	Voltage - Output 1	Standard Number	Voltage - Input (Max) [Max]	Approval Agency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Mounting Type	Control Features	Efficiency	Features	Applications
P-DUKE Technology QAE150-110S24W	132 W	Quarter Brick	Quarter Brick	40 V	5.5 A	Isolated Module	24 V	62368-1	160 V	CB, CE, cURus	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	1	-40 °C	105 C	3000 V	Through Hole	Active Low, Enable	89 %	Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Standby Output	ITE (Commercial)
P-DUKE Technology QAE150-48S48	144 W	Quarter Brick	Quarter Brick	33 V	3 A	Isolated Module	48 V	62368-1	75 V	CB, CE, cURus	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	1	-40 °C	105 C	2250 VDC	Through Hole	Active Low, Enable	92 %	Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Standby Output	ITE (Commercial)
P-DUKE Technology QAE150-24S24W	120 W	Quarter Brick	Quarter Brick	8.5 V	5 A	Isolated Module	24 V	62368-1	36 V	CB, CE, cURus	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	1	-40 °C	105 C	2250 VDC	Through Hole	Active Low, Enable	88 %	Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Standby Output	ITE (Commercial)
P-DUKE Technology QAE150-110S15W	129 W	Quarter Brick	Quarter Brick	40 V	8.6 A	Isolated Module	15 V	62368-1	160 V	CB, CE, cURus	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	1	-40 °C	105 C	3000 V	Through Hole	Active Low, Enable	89 %	Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Standby Output	ITE (Commercial)
