7381-2PG-3ES

Active

Conxall/Switchcraft

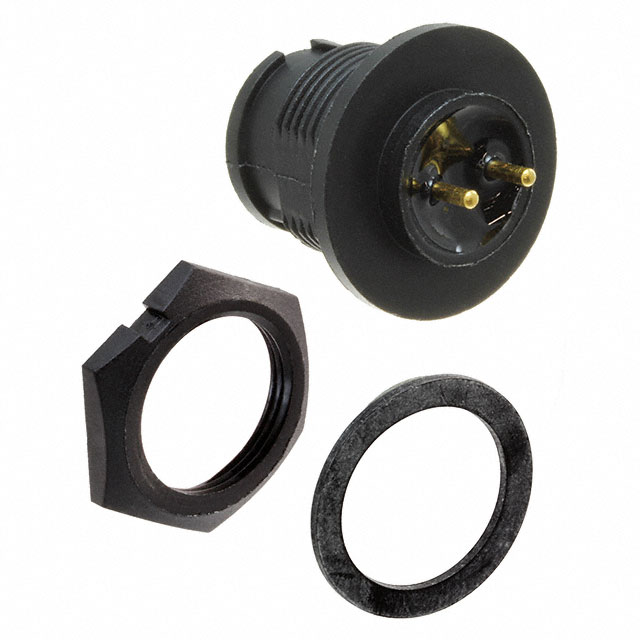

CONN RCPT MALE 2POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 2POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	7381-2PG-3ES	7381-2PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	Weathertight	Weathertight
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage Rating	600 V	600 V

CONN RCPT MALE 2POS GOLD SOLDER

Part	Ingress Protection	Contact Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Voltage Rating	Mounting Feature	Contact Finish - Mating	Color	Applications	Number of Positions	Fastening Type	Primary Material	Current Rating (Amps)	Termination	Mounting Type	Orientation	Shielding
Conxall/Switchcraft 7381-2PG-3ES	Weathertight	Brass	Male Pins, Receptacle	-40 °C	115 °C	Nylon, Polyamide (PA)	600 V	Bulkhead - Front Side Nut	Gold	Black	Automotive, Communication Systems, Instrumentation	2	Bayonet Lock	Plastic	Varies by Wire Gauge	Solder	Panel Mount, Through Hole	Keyed	Unshielded
Conxall/Switchcraft 7381-2PG-300	Weathertight	Brass	Male Pins, Receptacle	-40 °C	115 °C	Nylon, Polyamide (PA)	600 V	Bulkhead - Front Side Nut	Gold	Black	Automotive, Communication Systems, Instrumentation	2	Bayonet Lock	Plastic	Varies by Wire Gauge	Solder	Panel Mount, Through Hole	Keyed	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder
