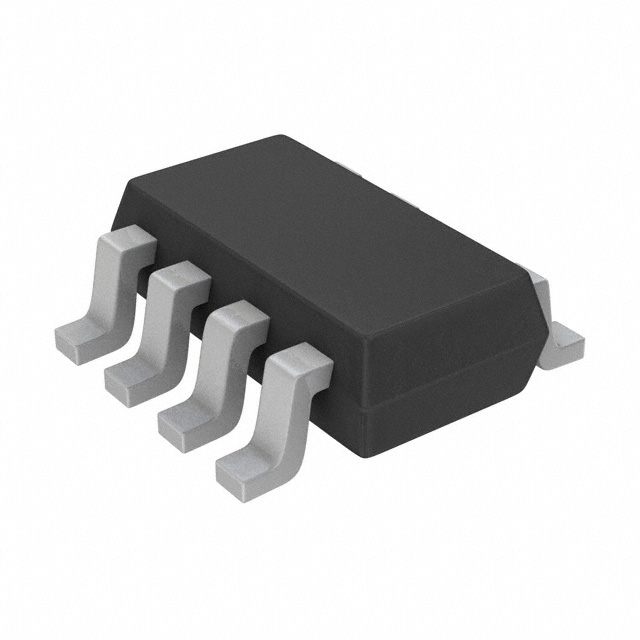

RT5788BGJ8F
ActiveRichtek USA Inc.
IC REG BUCK ADJ 4A TSOT23-8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT5788BGJ8F
ActiveRichtek USA Inc.
IC REG BUCK ADJ 4A TSOT23-8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT5788BGJ8F |
|---|---|
| Current - Output | 4 A |
| Frequency - Switching | 1.5 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 (FC) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 2.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.51 | |
| 10 | $ 1.62 | |||
| 25 | $ 1.38 | |||
| 100 | $ 1.12 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.85 | |||
| Digi-Reel® | 1 | $ 2.51 | ||
| 10 | $ 1.62 | |||
| 25 | $ 1.38 | |||
| 100 | $ 1.12 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.85 | |||
| Tape & Reel (TR) | 3000 | $ 0.76 | ||
| 6000 | $ 0.72 | |||
| 9000 | $ 0.70 | |||
Description
General part information
RT5788 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 4A SOT-23-8 Thin, TSOT-23-8
Documents
Technical documentation and resources
