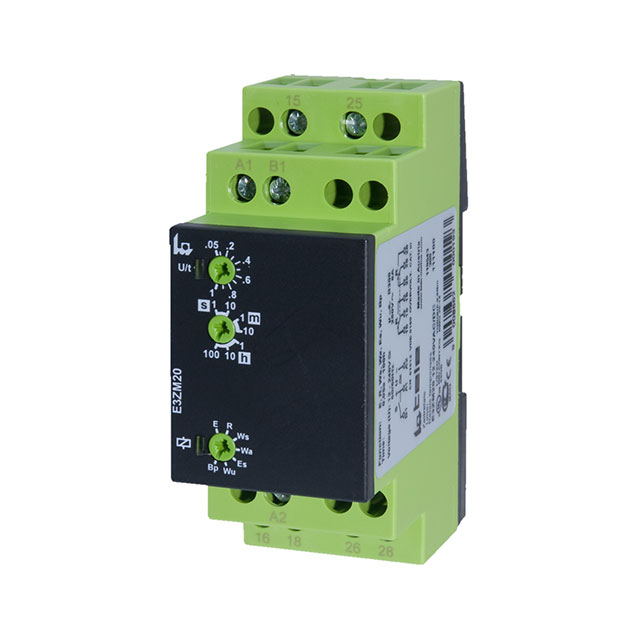

E3ZM20 12-240V AC/DC

Active

Aim Dynamics

RELAY TIME DELAY 100HR 8A 250V

Search across all available documentation for this part.

Active

Aim Dynamics

RELAY TIME DELAY 100HR 8A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	E3ZM20 12-240V AC/DC

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	250 VAC, 8 A
Delay Time [Max]	100 Hrs
Delay Time [Min]	0.05 Sec
Function	Programmable (Multi-Function)
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	12 VAC

RELAY TIME DELAY 100HR 8A 250V

Part	Timing Initiate Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Contact Rating @ Voltage	Relay Type	Delay Time [Max]	Delay Time [Min]	Timing Adjustment Method	Circuit	Termination Style	Mounting Type
Aim Dynamics E3ZM20 12-240V AC/DC	Input Voltage, Trigger Signal	240 VAC	12 VAC	Programmable (Multi-Function)	8 A, 250 VAC	Mechanical Relay	100 Hrs	0.05 Sec	Screwdriver Slot	DPDT (2 Form C)	Screw Terminal	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.05 Sec ~ 100 Hrs Delay 8A @ 250VAC DIN Rail

Technical documentation and resources

No documents available
