EBAFA-02-D
ActiveAdam Tech
EUROBLOCK 2POS
Deep-Dive with AI
Search across all available documentation for this part.
EBAFA-02-D
ActiveAdam Tech
EUROBLOCK 2POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EBAFA-02-D |
|---|---|
| Color | Green |
| Contact Material - Plating | Tin |
| Current | 16 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 2 |
| Screw Thread | M2.5 |
| Torque - Screw | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In |
| Voltage | 300 V |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.97 | |
| 10 | $ 0.49 | |||
| 25 | $ 0.39 | |||
| 50 | $ 0.34 | |||
| 200 | $ 0.28 | |||
| 400 | $ 0.25 | |||
| 600 | $ 0.24 | |||
| 1000 | $ 0.23 | |||
| 5000 | $ 0.21 | |||
Description
General part information
EBAFA Series

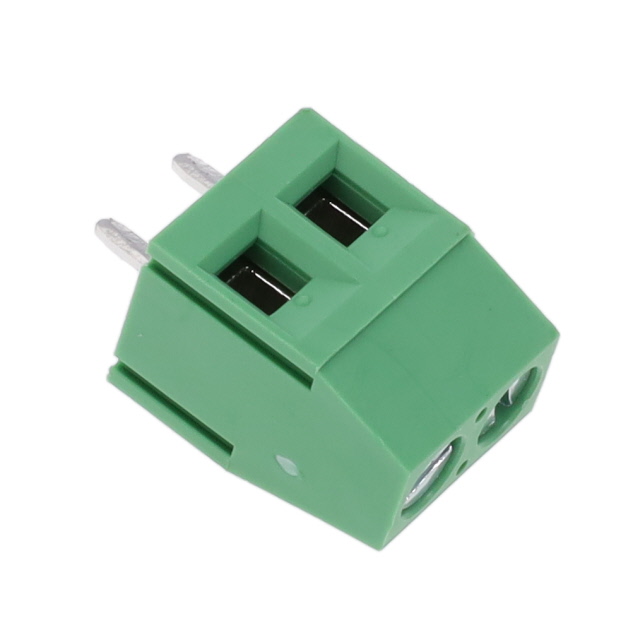

2 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
