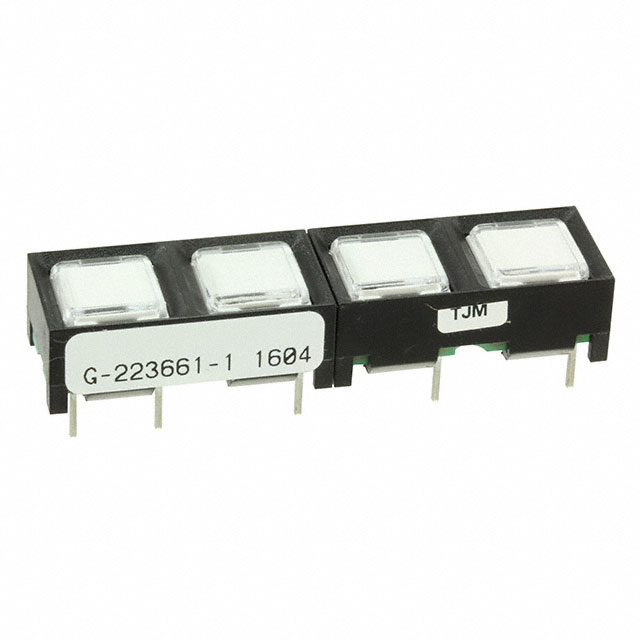

87FC3-201

Active

Grayhill Inc.

SWITCH KEYPAD 4KEY 0.01A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH KEYPAD 4KEY 0.01A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH KEYPAD 4KEY 0.01A 24V

Part	Switch Type	Key Color	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Key Type	Output Type	Legend Type	Mounting Type	Illumination	Termination Style	Operational Life	Contact Rating @ Voltage	Legend	Operating Temperature [Min]	Operating Temperature [Max]	Number of Keys
Grayhill Inc. 87FC3-201	Snap Dome	White	1	4	Transparent Key Cap	Independent Switches (SPST)	Interchangeable	Through Hole	Non-Illuminated	PC Pin	3000000 Cycles	0.01 A, 24 VDC	Customizable (Sold Separate)	-40 °C	80 C	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keypad Switch 4 Transparent Key Cap Keys Snap Dome Contacts Independent Switches (SPST) Output Non-Illuminated 0.01A @ 24VDC
