DC PLUG-P1J-P3B

Active

MEAN WELL USA Inc.

BARREL ADAPTER 2.1X5.5X11 TO 1.7

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC PLUG-P1J-P3B

Connector Style	Power DC Adapter
Conversion Type	Same Series
Convert From (Adapter End) [custom]	2.1 mm
Convert From (Adapter End) [custom]	5.5 mm
Convert To (Adapter End)	Plug
Convert To (Adapter End) [diameter]	4 mm, 1.7 mm
Gender	Female to Male
Housing Color	Black
Insulation Color	Black
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts	2 Conductors
Shielding	Unshielded

DC PLUG Series

Part	Shielding	Mounting Type	Housing Color	Number of Positions/Contacts	Gender	Convert To (Adapter End)	Convert To (Adapter End) [diameter]	Convert From (Adapter End) [custom]	Convert From (Adapter End) [custom]	Conversion Type	Insulation Color	Connector Style	Convert From (Adapter End)	Color	Convert From (Adapter End) [diameter]	Connector Type [diameter]	Connector Type	Length	Length	Cable Type
MEAN WELL USA Inc. DC PLUG-P1J-P3C	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	1.7 mm 4.8 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-R7BF-P1M						2.5mm DC Plug							Circular Connector Male Pins 4 Pos	Black
MEAN WELL USA Inc. DC PLUG-P1M-P1J	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	2.1 mm 5.5 mm			Same Series	Black	Power DC Adapter	Jack		2.5 mm 5.5 mm
MEAN WELL USA Inc. DC PLUG-P1M-P1JR	Unshielded	Free Hanging (In-Line) Right Angle	Black	2 Conductors	Female to Male	Plug	2.1 mm 5.5 mm			Same Series	Black	Power DC Adapter	Jack		2.5 mm 5.5 mm
MEAN WELL USA Inc. DC PLUG-P1J-P1L	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	2.5 mm 5.5 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-P3A	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	0.7 mm 2.35 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-P1JR	Unshielded	Free Hanging (In-Line) Right Angle	Black	2 Conductors	Female to Male	Plug	2.1 mm 5.5 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-P1IR	Unshielded	Free Hanging (In-Line) Right Angle	Black	2 Conductors	Female to Male	Plug	2.1 mm 5.5 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-P1M	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	2.5 mm 5.5 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-R7B	Unshielded													Black		2.1 mm 5.5 mm	Barrel Plug - 2.1mm ID 5.5mm OD to Circular 04 pos Male	12.2 mm	0.04 ft	Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.57
		5	$ 0.53
		10	$ 0.51

Description

General part information

DC PLUG Series

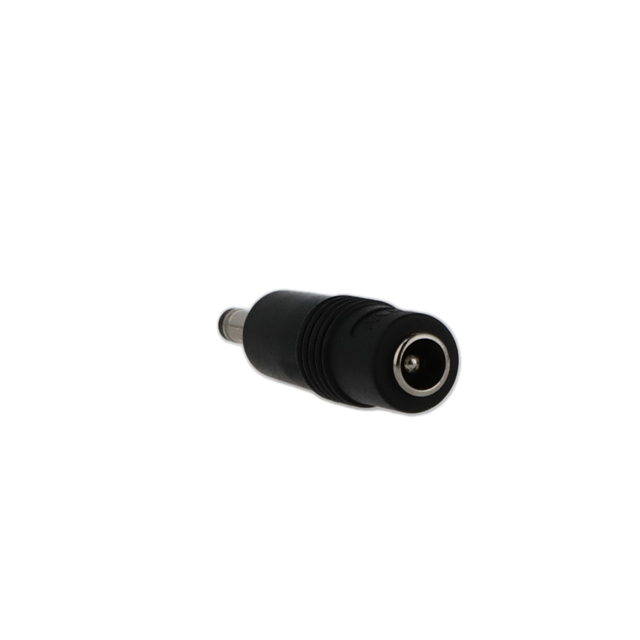

Adapter Connector Jack, 2.1mm ID x 5.5mm OD To Plug, 1.7mm ID x 4.0mm OD Free Hanging (In-Line)
