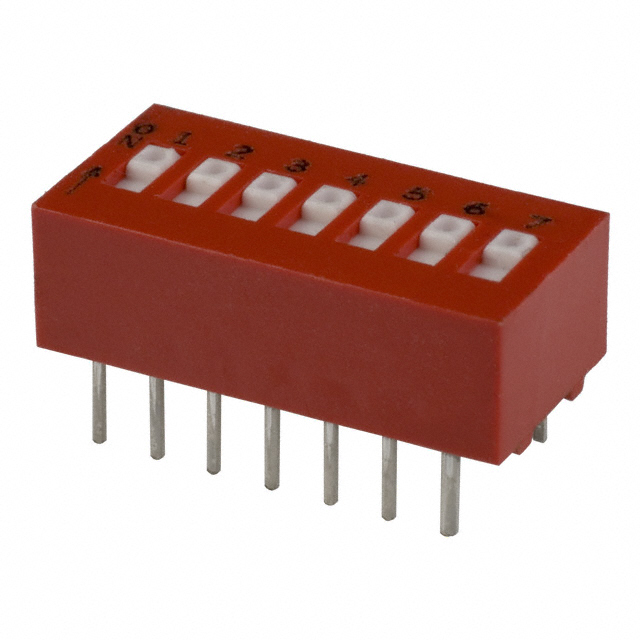

78RB07T

Active

Grayhill Inc.

SWITCH DIP OFF ON SPST 7 RECESSED SLIDE 0.15A 30VDC PC PINS 2000CYCLES 2.54MM THRU-HOLE TUBE

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH DIP OFF ON SPST 7 RECESSED SLIDE 0.15A 30VDC PC PINS 2000CYCLES 2.54MM THRU-HOLE TUBE

Technical Specifications

Parameters and characteristics for this part

SWITCH DIP OFF ON SPST 7 RECESSED SLIDE 0.15A 30VDC PC PINS 2000CYCLES 2.54MM THRU-HOLE TUBE

Part	Circuit	Actuator Level	Mounting Type	Washable	Contact Finish	Mechanical Life	Body Material	Electrical Life	Actuator Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Voltage Rating	Number of Positions	Pitch [x]	Pitch	Pitch [x]	Termination Style
Grayhill Inc. 78RB07T	SPST	Flush, Recessed	Through Hole		Gold	2000 Cycles	Thermoplastic	2000 Steps	Slide (Standard)	Copper Alloy	85 °C	-40 °C	0.265 in	6.73 mm	30 VDC	7	0.1 in	Full	2.54 mm	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	13	$ 4.16

General part information

Dip Switch SPST 7 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
