6282-5SG-513

Active

Conxall/Switchcraft

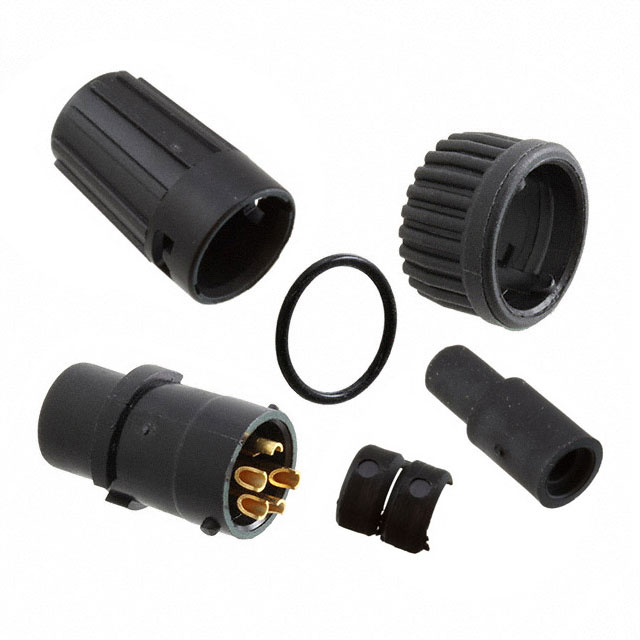

CONN PLUG FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6282-5SG-513

Active

Conxall/Switchcraft

CONN PLUG FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6282-5SG-513	6282-5SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	6.35 mm
Cable Opening	-	0.25 in
Cable Opening	-	0.22 in
Cable Opening	-	5.59 mm
Cable Opening [custom]	0.13 in, 0.15 in	0.13 - 0.17 in
Cable Opening [custom]	3.81 mm, 3.3 mm	3.3 - 4.32 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

6282-5SG Series

CONN PLUG FMALE 5P GOLD SLDR CUP

Part	Features	Orientation	Contact Finish - Mating	Contact Material	Backshell Material, Plating	Ingress Protection	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Shielding	Voltage Rating	Primary Material	Applications	Fastening Type	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
Conxall/Switchcraft 6282-5SG-315	Backshell	Keyed	Gold	Brass	Nylon, Polyamide (PA)	Weathertight	Varies by Wire Gauge	0.15 in, 0.17 in	3.81 mm, 4.32 mm	Black	-40 °C	115 °C	Female Sockets, Plug	Free Hanging (In-Line)	Unshielded	600 V	Plastic	Automotive, Communication Systems, Instrumentation	Bayonet Lock
Conxall/Switchcraft 6282-5SG-318	Backshell	Keyed	Gold	Brass	Nylon, Polyamide (PA)	Weathertight	Varies by Wire Gauge			Black	-40 °C	115 °C	Female Sockets, Plug	Free Hanging (In-Line)	Unshielded	600 V	Plastic	Automotive, Communication Systems, Instrumentation	Bayonet Lock	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 6282-5SG-522	Backshell	Keyed	Gold	Brass	Nylon, Polyamide (PA)	Weathertight	Varies by Wire Gauge			Black	-40 °C	115 °C	Female Sockets, Plug	Free Hanging (In-Line)	Unshielded	600 V	Plastic	Automotive, Communication Systems, Instrumentation	Bayonet Lock					6.35 mm	0.25 in	0.22 in	5.59 mm
Conxall/Switchcraft 6282-5SG-513	Backshell	Keyed	Gold	Brass	Nylon, Polyamide (PA)	Weathertight	Varies by Wire Gauge	0.13 in, 0.15 in	3.3 mm, 3.81 mm	Black	-40 °C	115 °C	Female Sockets, Plug	Free Hanging (In-Line)	Unshielded	600 V	Plastic	Automotive, Communication Systems, Instrumentation	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.91

Description

General part information

6282-5SG Series

5 Position Circular Connector Plug, Female Sockets Solder Cup
