433-1"X60YD

Active

3M (TC)

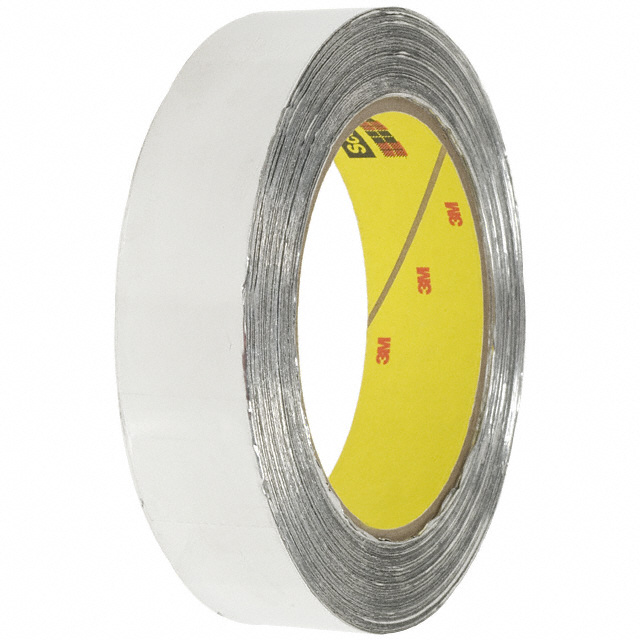

TAPE ALUM FOIL SILVER 1"X60YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE ALUM FOIL SILVER 1"X60YDS

Technical Specifications

Parameters and characteristics for this part

Specification	433-1"X60YD

Adhesive	Silicone Thermosetting
Backing, Carrier	Aluminum Foil
Color	Silver
Length	60 yds
Length	55 m
Length	180 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Aluminum Foil
Temperature Range [Max]	600 °F, 316 °C
Temperature Range [Min]	-65 °F, -54 °C
Thickness - Adhesive	0.041 mm
Thickness - Adhesive	1.6 mils
Thickness - Adhesive	0.0016 "
Thickness - Backing, Carrier	0.002 "
Thickness - Backing, Carrier	0.051 mm
Thickness - Backing, Carrier	2 mils
Usage	Heat Dissipation, Reflection
Width [x]	25.4 mm
Width [x]	1 in

Part	Length	Length	Length	Shelf Life	Backing, Carrier	Width [y]	Width [y]	Tape Type	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Temperature Range [Min]	Temperature Range [Max]	Usage	Shelf Life Start	Color	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [x]	Width [x]
3M (TC) 433-2"X60YD	60 yds	55 m	180 ft	18 Months	Aluminum Foil	2 "	50.8 mm	Aluminum Foil	16 °C 60 °F	27 °C 80 °F	-65 °F -54 °C	316 °C 600 °F	Heat Dissipation Reflection	Date of Manufacture	Silver	0.002 "	0.051 mm	2 mils	Silicone Thermosetting	0.041 mm	1.6 mils	0.0016 "
3M (TC) 433-1"X60YD	60 yds	55 m	180 ft	18 Months	Aluminum Foil			Aluminum Foil	16 °C 60 °F	27 °C 80 °F	-65 °F -54 °C	316 °C 600 °F	Heat Dissipation Reflection	Date of Manufacture	Silver	0.002 "	0.051 mm	2 mils	Silicone Thermosetting	0.041 mm	1.6 mils	0.0016 "	25.4 mm	1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Aluminum Foil Tape Silicone Thermosetting Adhesive Silver 1.00" (25.40mm) X 180' (55.0m) 60 yds
