M3CKK-6020K

Active

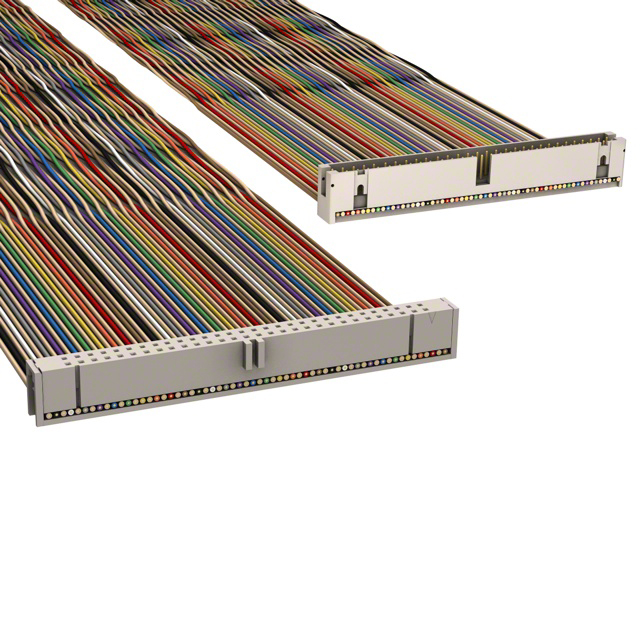

IDC CABLE - MKC60K/MC60F/MPK60K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide 4600 Series Drawing +1

M3CKK-6020K

Active

IDC CABLE - MKC60K/MC60F/MPK60K

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide 4600 Series Drawing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3CKK-6020K	M3CKK Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Plug	Socket to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key	Polarizing Key
Length	508 mm	1.52 - 508 mm
Length	1.67 ft	1.67 - 5 ft
Length	-	1.5 - 3.34 ft
Length	-	1.02 - 914.4 mm
Length	-	6 "
Length	-	0.5 '
Number of Positions	60	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3CKK Series

IDC CABLE - MKC34K/MC34F/MPK34K

Part	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Number of Positions	Number of Rows	Features	Color	Length	Length	Contact Finish	Pitch - Connector	Pitch - Connector	Connector Type	Length [x]	Length [x]	Length	Length
3M M3CKK-3420K	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	IDC	34	2	Polarizing Key	Multiple, Twisted Pair (Flat)	508 mm	1.67 ft	Gold	0.1 in	2.54 mm	Socket to Plug
3M M3CKK-5036R	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	IDC	50	2	Polarizing Key	Multiple, Ribbon			Gold	0.1 in	2.54 mm	Socket to Plug	3 ft	914.4 mm
3M M3CKK-2006R	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	IDC	20	2	Polarizing Key	Multiple, Ribbon	152.4 mm		Gold	0.1 in	2.54 mm	Socket to Plug			6 "	0.5 '
3M M3CKK-3018R	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	IDC	30	2	Polarizing Key	Multiple, Ribbon			Gold	0.1 in	2.54 mm	Socket to Plug	1.5 ft	457.2 mm
3M M3CKK-6020K	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	IDC	60	2	Polarizing Key	Multiple, Twisted Pair (Flat)	508 mm	1.67 ft	Gold	0.1 in	2.54 mm	Socket to Plug
3M M3CKK-6036R	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	IDC	60	2	Polarizing Key	Multiple, Ribbon			Gold	0.1 in	2.54 mm	Socket to Plug	3 ft	914.4 mm
3M M3CKK-5020K	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	IDC	50	2	Polarizing Key	Multiple, Twisted Pair (Flat)	508 mm	1.67 ft	Gold	0.1 in	2.54 mm	Socket to Plug
3M M3CKK-3018J	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	IDC	30	2	Polarizing Key				Gold	0.1 in	2.54 mm	Socket to Plug	1.5 ft	457.2 mm
3M M3CKK-2618J	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	IDC	26	2	Polarizing Key				Gold	0.1 in	2.54 mm	Socket to Plug	1.5 ft	457.2 mm
3M M3CKK-2620K	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	IDC	26	2	Polarizing Key	Multiple, Twisted Pair (Flat)	508 mm	1.67 ft	Gold	0.1 in	2.54 mm	Socket to Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.33
		10	$ 35.86
		25	$ 32.54
		50	$ 30.29
		100	$ 28.26
		250	$ 25.87

Description

General part information

M3CKK Series

60 Position Cable Assembly Rectangular Socket to Plug 1.67' (508.00mm)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

4600 Series Drawing

Datasheet
