BU-27X

Active

MUELLER ELECTRIC

HD CLIP SS NON-INSUL 20A

Search across all available documentation for this part.

Active

MUELLER ELECTRIC

HD CLIP SS NON-INSUL 20A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

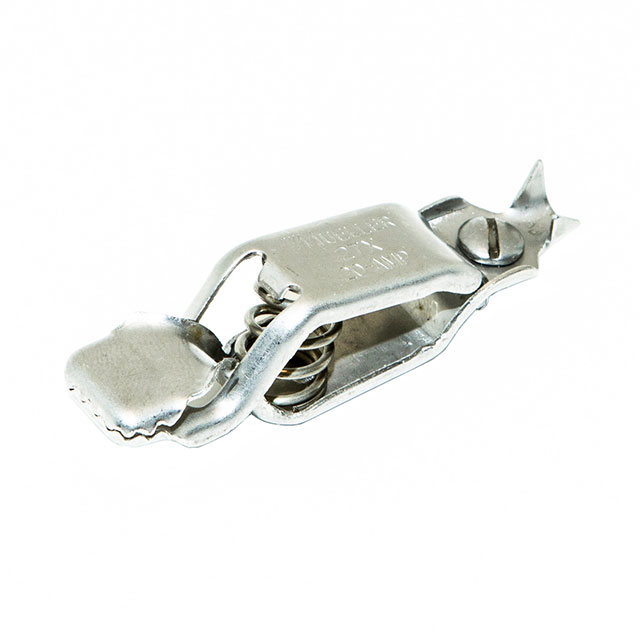

20 A Non-Insulated Heavy Duty, 3 Sided Jaw Test Clip Stainless Steel 0.625" (15.88mm) 5/8"

Technical documentation and resources

Specification	BU-27X	BU-27 Series

Color	Natural	Natural
Current Rating (Amps)	20 A	20 - 40 A
Insulation	Non-Insulated	Non-Insulated
Jaw Opening	0.625 "	0.625 "
Jaw Opening	15.88 mm	15.88 mm
Length	-	60.96 mm
Length [x]	2.44 in	2.4 - 2.44 in
Length [x]	61.98 mm	61.98 mm
Material	Stainless Steel	Copper, Stainless Steel
Quantity	1 Box	1 Box
Ratings	-	AA59466-008
Termination	Crimp or Screw	Crimp or Screw
Type	Heavy Duty, 3 Sided Jaw	Heavy Duty, 3 Sided Jaw, Geophone

Part	Current Rating (Amps)	Material	Ratings	Length [x]	Length [x]	Color	Jaw Opening	Jaw Opening	Termination	Insulation	Quantity	Type	Length
MUELLER ELECTRIC BU-27C	40 A	Copper	AA59466-008	2.44 in	61.98 mm	Natural	0.625 "	15.88 mm	Crimp or Screw	Non-Insulated	1 Box	Heavy Duty, 3 Sided Jaw
MUELLER ELECTRIC BU-27CGW	40 A	Copper		2.4 in		Natural	0.625 "	15.88 mm	Crimp or Screw	Non-Insulated	1 Box	Geophone	60.96 mm
MUELLER ELECTRIC BU-27M	40 A	Copper		2.4 in		Natural	0.625 "	15.88 mm	Crimp or Screw	Non-Insulated	1 Box	Heavy Duty, 3 Sided Jaw	60.96 mm
MUELLER ELECTRIC BU-27X	20 A	Stainless Steel		2.44 in	61.98 mm	Natural	0.625 "	15.88 mm	Crimp or Screw	Non-Insulated	1 Box	Heavy Duty, 3 Sided Jaw
