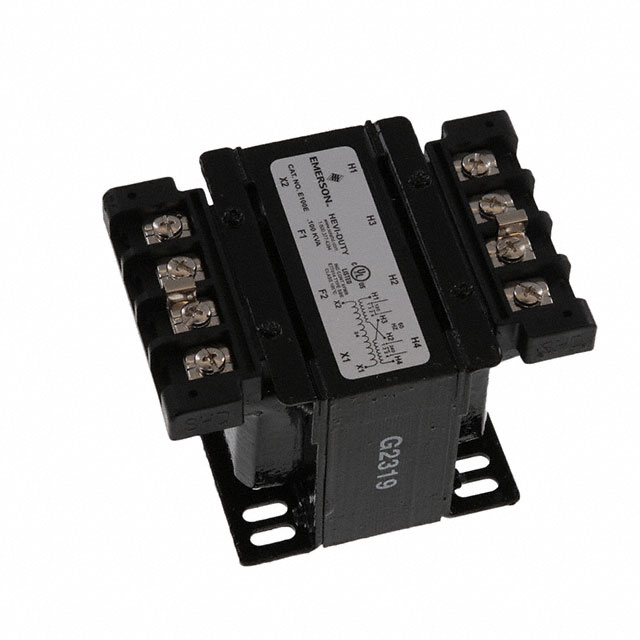

PWR XFMR LAMINATED 100VA CHAS MT

Search across all available documentation for this part.

Active

SolaHD

PWR XFMR LAMINATED 100VA CHAS MT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PWR XFMR LAMINATED 100VA CHAS MT

Technical documentation and resources

Parameters and characteristics commom to parts in this series

PWR XFMR LAMINATED 100VA CHAS MT

Part	Secondary Winding(s)	Primary Winding(s)	Termination Style	Power - Max [Max]	Voltage - Primary	Type	Voltage - Secondary (Full Load)	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]
SolaHD E100E	Single	Dual, Multiple Taps	Quick Connect, Solder	100 VA	120 V, 240 V	Laminated Core	24 V	Chassis Mount
SolaHD E100EWA			Quick Connect, Solder	100 VA		Laminated Core		Chassis Mount	117.1 mm	86.1 mm
SolaHD E100WB			Quick Connect, Solder	100 VA		Laminated Core		Chassis Mount	117.1 mm	86.1 mm
SolaHD E100EW			Quick Connect, Solder	100 VA		Laminated Core		Chassis Mount	117.1 mm	86.1 mm
SolaHD E100D	Single	Dual	Quick Connect, Solder	100 VA	240 V, 480 V	Laminated Core	24 V	Chassis Mount	117.1 mm	86.1 mm	75.2 mm
SolaHD E100WA			Quick Connect, Solder	100 VA		Laminated Core		Chassis Mount	117.1 mm	86.1 mm
SolaHD E100TH	Dual	Multiple Taps, Single	Quick Connect, Solder	100 VA		Laminated Core		Chassis Mount	4.5 in	113.8 mm	98.8 mm
SolaHD E100EWB			Quick Connect, Solder	100 VA		Laminated Core		Chassis Mount	117.1 mm	86.1 mm
SolaHD E100W			Quick Connect, Solder	100 VA		Laminated Core		Chassis Mount	117.1 mm	86.1 mm
SolaHD E100TC	Multiple Taps, Single	Multiple Taps, Single	Quick Connect, Solder	100 VA		Laminated Core		Chassis Mount	4.5 in	113.8 mm	98.8 mm
