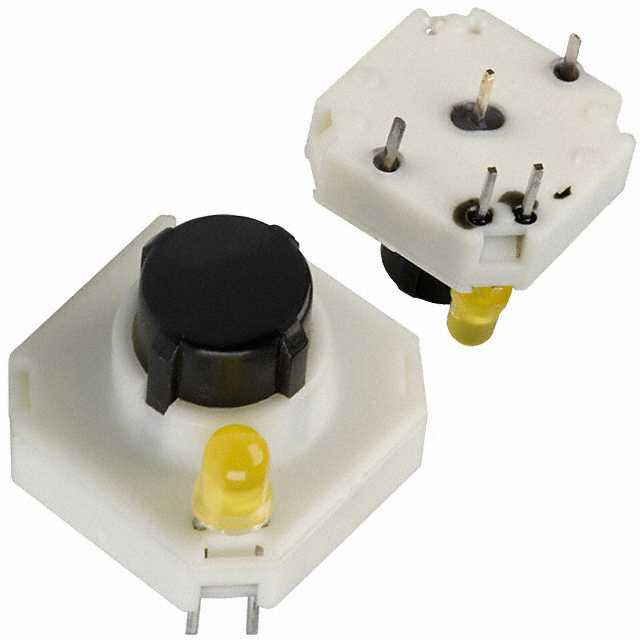

3.14100.8430000

Obsolete

RAFI USA

SWITCH TACTILE SPST-NO 0.25A 35V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH TACTILE SPST-NO 0.25A 35V

Technical Specifications

Parameters and characteristics for this part

Specification	3.14100.8430000

Actuator Height off PCB, Vertical [z]	12.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage [custom]	35 VAC/DC
Contact Rating @ Voltage [custom]	0.25 A
Illumination	Illuminated
Illumination Type, Color	LED, Yellow
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	296 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	15 mm
Outline [y]	15 mm
Switch Function	Off-Mom
Switch Travel	0.5 mm
Termination Style	PC Pin

Part	Illumination Type, Color	Operating Force	Actuator Type	Termination Style	Mechanical Life	Switch Travel	Mounting Type	Actuator Orientation	Circuit	Illumination	Actuator Height off PCB, Vertical [z]	Outline [y]	Outline [x]	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]
RAFI USA 3.14100.8430000	LED Yellow	296 gf	Round Button	PC Pin	1000000 Cycles	0.5 mm	Through Hole	Top Actuated	SPST-NO	Illuminated	12.5 mm	15 mm	15 mm	Off-Mom	70 °C	-25 °C	35 VAC/DC	0.25 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
