9553-0-15-15-11-27-04-0

Active

Mill-Max Manufacturing Corp.

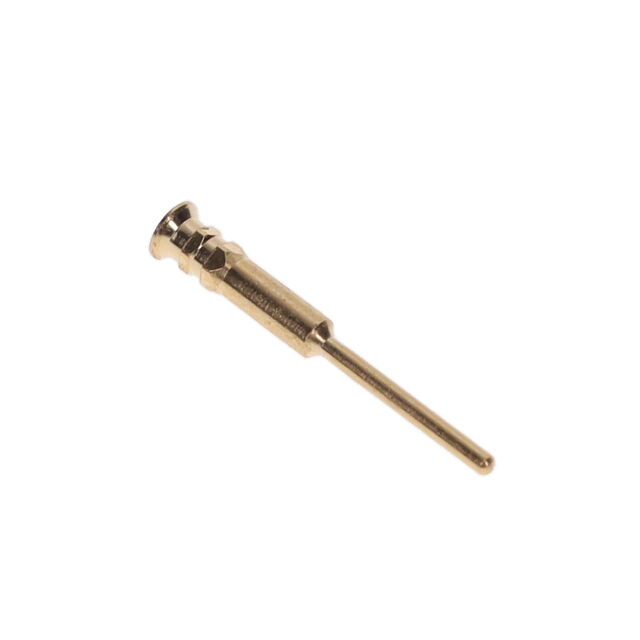

CONN RECEPT PIN .015-.021" .180"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9553-0-15-15-11-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .015-.021" .180"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9553-0-15-15-11-27-04-0

Accepts Pin Diameter [Max] [diameter]	0.51 mm
Accepts Pin Diameter [Max] [diameter]	0.02 "
Accepts Pin Diameter [Min] [diameter]	0.015 "
Accepts Pin Diameter [Min] [diameter]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.4 mm
Flange Diameter [diameter]	0.055 in
Length - Overall [x]	0.352 "
Length - Overall [x]	8.94 mm
Mounting Hole Diameter [diameter]	0.041 in
Mounting Hole Diameter [diameter]	1.04 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth [z]	0.154 in
Socket Depth [z]	3.91 mm
Tail Diameter [diameter]	0.46 mm
Tail Diameter [diameter]	0.018 in
Tail Type	Standard Tail
Termination	Press-Fit, Hex

9553-0 Series

Part	Socket Depth [z]	Socket Depth [z]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Termination	Tail Type	Contact Finish	Tail Diameter [diameter]	Tail Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]
Mill-Max Manufacturing Corp. 9553-0-15-15-21-27-04-0	0.154 in	3.91 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	Beryllium Copper	1.4 mm	0.055 in	0.352 "	8.94 mm	0.76 Ám	30 Áin	Press-Fit Hex	Standard Tail	Gold	0.46 mm	0.018 in	-55 °C	125 °C	0.041 in	1.04 mm	0.79 mm	0.031 in
Mill-Max Manufacturing Corp. 9553-0-15-80-21-84-04-0	0.154 in	3.91 mm					Beryllium Copper	1.4 mm	0.055 in	0.352 "	8.94 mm	2.54 µm	100 µin	Press-Fit Hex	Standard Tail	Tin	0.46 mm	0.018 in	-55 °C	125 °C	0.041 in	1.04 mm	0.79 mm	0.031 in	0.015 "	0.51 mm	0.02 "	0.38 mm
Mill-Max Manufacturing Corp. 9553-0-15-15-21-14-04-0	0.154 in	3.91 mm					Beryllium Copper	1.4 mm	0.055 in	0.352 "	8.94 mm	0.25 Ám	10 Áin	Press-Fit Hex	Standard Tail	Gold	0.46 mm	0.018 in	-55 °C	125 °C	0.041 in	1.04 mm	0.79 mm	0.031 in	0.015 "	0.51 mm	0.02 "	0.38 mm
Mill-Max Manufacturing Corp. 9553-0-15-15-11-27-04-0	0.154 in	3.91 mm					Beryllium Copper	1.4 mm	0.055 in	0.352 "	8.94 mm	0.76 Ám	30 Áin	Press-Fit Hex	Standard Tail	Gold	0.46 mm	0.018 in	-55 °C	125 °C	0.041 in	1.04 mm	0.79 mm	0.031 in	0.015 "	0.51 mm	0.02 "	0.38 mm
Mill-Max Manufacturing Corp. 9553-0-15-01-11-02-04-0	0.154 in	3.91 mm					Beryllium Copper	1.4 mm	0.055 in	0.352 "	8.94 mm	2.54 µm	100 µin	Press-Fit Hex	Standard Tail	Tin-Lead	0.46 mm	0.018 in	-55 °C	125 °C	0.041 in	1.04 mm	0.79 mm	0.031 in	0.015 "	0.51 mm	0.02 "	0.38 mm
Mill-Max Manufacturing Corp. 9553-0-15-80-21-14-04-0	0.154 in	3.91 mm					Beryllium Copper	1.4 mm	0.055 in	0.352 "	8.94 mm	0.25 Ám	10 Áin	Press-Fit Hex	Standard Tail	Gold	0.46 mm	0.018 in	-55 °C	125 °C	0.041 in	1.04 mm	0.79 mm	0.031 in	0.015 "	0.51 mm	0.02 "	0.38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.25
		10	$ 1.06
		25	$ 1.00
		50	$ 0.95
		100	$ 0.90
		250	$ 0.85
		500	$ 0.81
		1000	$ 0.77
		3000	$ 0.71

Description

General part information

9553-0 Series

Pin Receptacle Connector 0.015" ~ 0.020" (0.38mm ~ 0.51mm) Standard Tail Press-Fit, Hex

Documents

Technical documentation and resources
