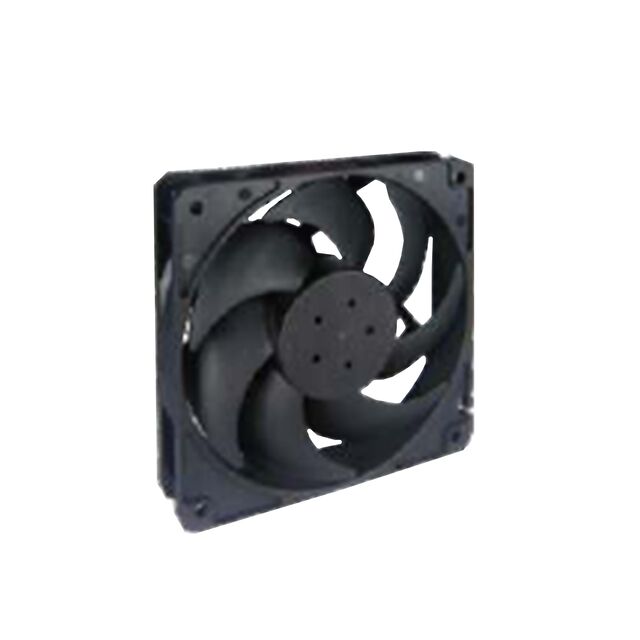

QYW12025024BH-5

Active

YS TECH USA

FAN AXIAL 120X25MM 24VDC WIRE

Search across all available documentation for this part.

Active

YS TECH USA

FAN AXIAL 120X25MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	QYW12025024BH-5

Air Flow	3.58 mł/min
Air Flow	128 CFM
Bearing Type	Ball
Current Rating (Amps)	320 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	75000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	51.4 dB(A)
Power (Watts)	7.68 W
RPM	4400 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	12 VDC
Width [y]	25 mm

Part	Material - Blade	RPM	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Power (Watts)	Termination	Lifetime @ Temp.	Static Pressure	Static Pressure	Fan Type	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Noise	Bearing Type	Current Rating (Amps)
YS TECH USA QYW12025024BM-12	Polybutylene Terephthalate (PBT)	2800 RPM	24 VDC	26.4 VDC	12 VDC	25 mm	3.12 W	2 Wire Leads	80000 Hrs	58.8 Pa	0.236 in H2O	Tubeaxial	2.29 m³/min	81.8 CFM	120 mm	120 mm	39.1 dB(A)	Ball
YS TECH USA QYW12025024BH-5	Polybutylene Terephthalate (PBT)	4400 RPM	24 VDC	26.4 VDC	12 VDC	25 mm	7.68 W	2 Wire Leads	75000 Hrs			Tubeaxial	3.58 mł/min	128 CFM	120 mm	120 mm	51.4 dB(A)	Ball	320 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 128.0 CFM (3.58m³/min) 2 Wire Leads
